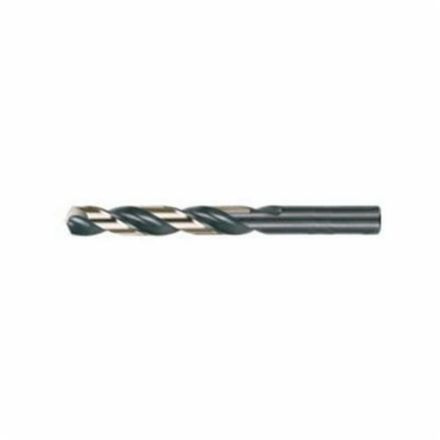

FORET 11/32 0.3438 135DEG STRAIGHT SHANK NOIR & OR
- GLD# 4187757306870081016
- MFG# C18018
- UPC 697334180180
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description
Cle-Line foret longueur jobber, à toute épreuve, gamme : 1878, impérial, 11/32 po foret - fraction, 0.3438 po foret - pouce décimal, 4-3/4 po de longueur totale, profondeur de coupe 5xd, 2 goujures, droite goujure hélicoïdale, 3-7/16 po goujure longueur, 11/32 po diam. X 1-5/16 po l queue, queue droite, 135 deg point, point de partage, coupe à droite, tranchant hss, non à travers le liquide de refroidissement, hss, oxyde noir/or, matériaux applicables : acier allié, acier carbone, fonte grise, acier à faible teneur en carbone et fonte nodulaire
Specifications
| UNSPSC | 23241606 |
|---|---|
| Application | General Purpose Drilling and Maintenance Applications |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.3438 in |
| Drill Size - Fraction | 11/32 in |
| Finish | Black/Gold Oxide |
| Flute Length | 3-7/16 in |
| Flute Type | Right Spiral |
| Material | HSS |
| Overall Length | 4-3/4 in |
| Point Type | Split |
| Series | 1878 |
| Shank Size | 11/32 in Dia x 1-5/16 in L |
| Shank Type | Straight |
| Type | Heavy Duty |
| Drill Diameter Measurement System | Imperial |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | Yes |
| Point Angle | 135 deg |
| Applicable Materials | Alloy Steel, Carbon Steel, Gray Cast Iron, Low Carbon Steel, Nodular Cast Iron |
Features
- 135 deg split point is self-centering for reduced thrust and easier penetration, preferred for stainless steels
- HSS substrate with heavy duty geometry
- Black and gold finish for enhanced operation and long drill life
