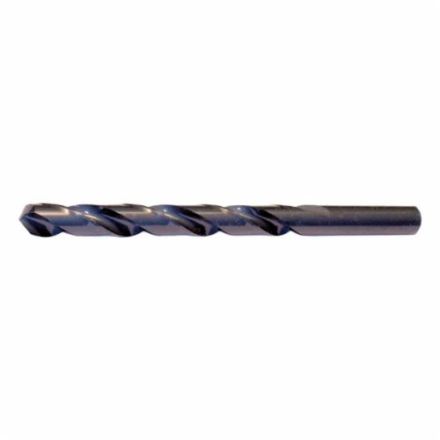

11.50 MM CLE-MAX JOB BLK
- GLD# 4312762687610605000
- MFG# C71312
- UPC 697334713128
Min. Order Qty 1
Description
Cleveland cle-max foret longueur jobber, usage général, gamme : 2001g, métrique/impérial, 11,5 mm foret - métrique, 0,4528 po foret - pouce décimal, 142 mm de longueur hors tout, profondeur de coupe 4xd, 2 goujures, droite goujure hélicoïdale , 94 mm goujure longueur, 11,5 mm diam. x 48 mm l queue, queue droite, 118 deg pointe, pointe radiale, coupe à droite, tranchant hss-e, liquide de refroidissement non traversant, hss-e, oxyde vapeur, matériaux applicables : aluminium, fonte, alliage de cuivre et acier à faible teneur en carbone
Specifications
| UNSPSC | 23241606 |
|---|---|
| Cutting Depth | 4XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS-E |
| Drill Size - Decimal Inch | 0.4528 in |
| Finish | Steam Oxide |
| Flute Length | 94 mm |
| Flute Type | Right Spiral |
| Material | HSS-E |
| Overall Length | 142 mm |
| Point Type | Radial |
| Series | 2001G |
| Shank Size | 11.5 mm Dia x 48 mm L |
| Shank Type | Straight |
| Type | General Purpose |
| Drill Diameter Measurement System | Metric/Imperial |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | Yes |
| Drill Size - Metric | 11.5 mm |
| Point Angle | 118 deg |
| Applicable Materials | Aluminum, Cast Iron, Copper Alloy, Low Carbon Steel |
Features
- Improved geometry
- Premium substrate for better wear life
