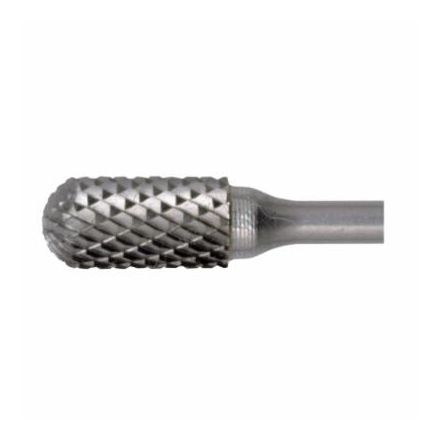

BURIN CARBURE 3/8"X1/4" SC-3 STEEL
- GLD# 4322244282160203000
- MFG# C17543
- UPC 697334175438
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description
Cle-Line Meule détabli et sur pied , impérial, gamme : 1847, extrémité arrondie, tête de 3/8 po de diamètre, longueur de coupe 3/4 po, longueur totale 2-1/2 po, cylindrique - extrémité arrondie (forme sc), forme de tête, coupe double, 1/4 po queue diamètre, tête carbure monobloc, revêtement tête brillant, 66000 tr/min maximum, matériaux applicables : laiton, bronze, fonte, fibre de verre, inconel, fonte malléable, masonite, alliage dacier, acier au carbone, acier inoxydable et titane, spécifications industrielles : sc-3
Specifications
| UNSPSC | 23251706 |
|---|---|
| Head Coating | Bright |
| Head Diameter | 3/8 in |
| Head Material | Solid Carbide |
| Head Shape | Cylindrical - Radius End (Shape SC) |
| Industry Specification | SC-3 |
| Length of Cut | 3/4 in |
| Overall Length | 2-1/2 in |
| Series | 1847 |
| Shank Diameter | 1/4 in |
| End Type | Radius |
| Application | General Purpose Applications |
| Type | Imperial |
| Maximum Speed | 66000 rpm |
| Cut Type | Double |
| Applicable Materials | Brass, Bronze, Carbon Steel, Cast Iron, Fiberglass, Inconel, Malleable Iron, Masonite, Stainless Steel, Steel Alloy, Titanium |
Features
- The double cut style has right and left hand helical flutes combined to produce a chisel type cutting tooth
- Results in faster penetration and stock removal with minimal bounce or chatter
- Results in higher productivity with less operator fatigue and a good finish on a variety of workpiece materials
