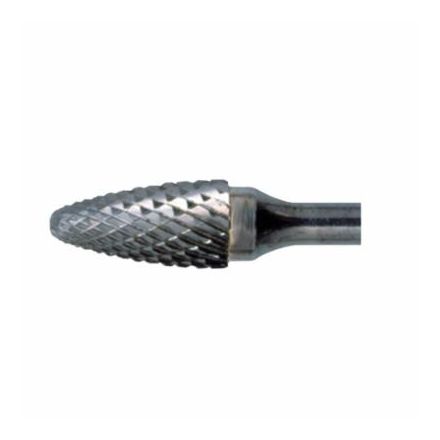

3/8X1/4 X 6'' SF-3L6 DOUBLE COUPE BURIN CARBURE
- GLD# 4249039767850154000
- MFG# C17836
- UPC 697334178361
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description
Cle-Line Fraise carbure , impériale, gamme : 1848, extrémité arrondie, tête de 3/8 po de diamètre, longueur de coupe 3/4 po, longueur totale 6-3/4 po, forme de tête à rayon darbre (forme SF), coupe double, 1/4 po queue diamètre, tête en carbure monobloc, revêtement tête brillant, 66000 tr/min maximum, matériaux applicables : laiton, bronze, fonte, fibre de verre, inconel, fonte malléable, masonite, alliage dacier, acier au carbone, acier inoxydable et titane, spécifications industrielles : SF-3L6
Specifications
| UNSPSC | 23251706 |
|---|---|
| Head Coating | Bright |
| Head Diameter | 3/8 in |
| Head Material | Solid Carbide |
| Head Shape | Tree Radius (Shape SF) |
| Industry Specification | SF-3L6 |
| Length of Cut | 3/4 in |
| Overall Length | 6-3/4 in |
| Series | 1848 |
| Shank Diameter | 1/4 in |
| End Type | Radius |
| Application | General Purpose Applications |
| Type | Imperial |
| Maximum Speed | 66000 rpm |
| Cut Type | Double |
| Applicable Materials | Brass, Bronze, Carbon Steel, Cast Iron, Fiberglass, Inconel, Malleable Iron, Masonite, Stainless Steel, Steel Alloy, Titanium |
Features
- The double cut style has right and left hand helical flutes combined to produce a chisel type cutting tooth
- Results in faster penetration and stock removal with minimal bounce or chatter
- Results in higher productivity with less operator fatigue and a good finish on a variety of workpiece materials
