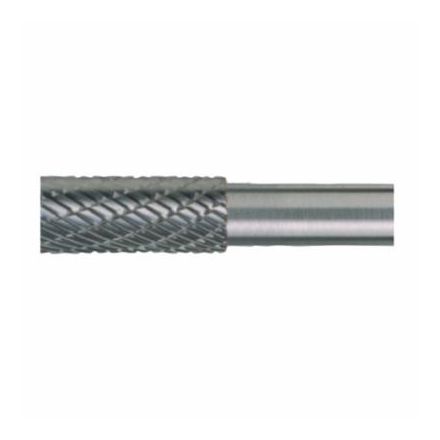

1845 SA-5 1/2 X1/4 SA BUR-DBL
- GLD# 4254182868680082000
- MFG# C17555
- UPC 697334175551
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description
Cle-Line Lime de machiniste , impérial, gamme : 1845, extrémité plate, tête de 1/2 po de diamètre, longueur de coupe de 1 po, longueur totale de 2-3/4 po, cylindrique - pas de coupe dextrémité (forme sa), forme de tête, coupe double, 1/4 po queue diamètre, tête carbure monobloc, revêtement tête brillant, 50000 tr/min maximum, matériaux applicables : laiton, bronze, fonte, fibre de verre, inconel, fonte malléable, masonite, alliage dacier, acier au carbone, acier inoxydable et titane, spécifications industrielles : sa-5
Specifications
| UNSPSC | 23251706 |
|---|---|
| Head Coating | Bright |
| Head Diameter | 1/2 in |
| Head Material | Solid Carbide |
| Head Shape | Cylindrical - No End Cut (Shape SA) |
| Industry Specification | SA-5 |
| Length of Cut | 1 in |
| Overall Length | 2-3/4 in |
| Series | 1845 |
| Shank Diameter | 1/4 in |
| End Type | Flat |
| Application | General Purpose Applications |
| Type | Imperial |
| Maximum Speed | 50000 rpm |
| Cut Type | Double |
| Applicable Materials | Brass, Bronze, Carbon Steel, Cast Iron, Fiberglass, Inconel, Malleable Iron, Masonite, Stainless Steel, Steel Alloy, Titanium |
Features
- The double cut style has right and left hand helical flutes combined to produce a chisel type cutting tooth
- Results in faster penetration and stock removal with minimal bounce or chatter
- Results in higher productivity with less operator fatigue and a good finish on a variety of workpiece materials
Guides & Manuals
Cle_Line_C17760_Catalog.pdf
Download
