FORET A CENTRER HSS #1
- GLD# 9879583
- MFG# 56701
- UPC 662355567012
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description

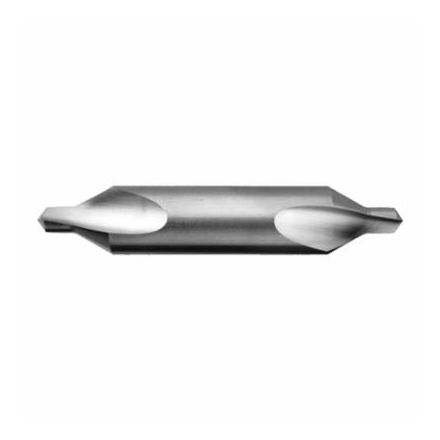

Chicago-Latrobe combiné foret et fraisage, non-galvanisé, gamme : 217, 3/64 po foret - fraction, 0,0469 po foret - pouce décimal, diamètre de pointe #1, corps de 1/8 po de diamètre, 1-1/4 po de longueur totale, 2 goujures, 0,0469 po goujure longueur, 1/8 po queue, queue droite, 60 deg angle inclus, coupe à droite, tranchant hss, hss, brillant, matériaux applicables : acier allié, fonte, acier au carbone et acier à outils

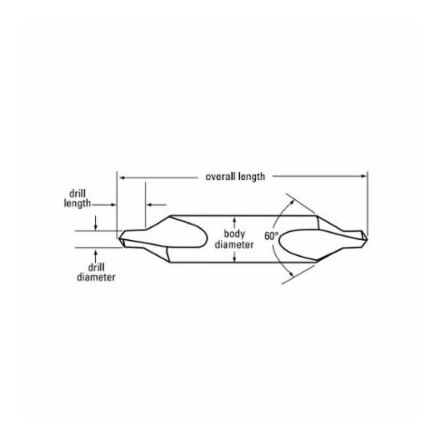

Specifications
| UNSPSC | 27112812 |
|---|---|
| Application | Spotting and Centering |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.0469 in |
| Drill Size - Fraction | 3/64 in |
| Finish | Bright |
| Flute Length | 0.0469 in |
| Material | HSS |
| Overall Length | 1-1/4 in |
| Series | 217 |
| Shank Size | 1/8 in |
| Shank Type | Straight |
| Type | Plain |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | No |
| Body Diameter | 1/8 in |
| Included Angle | 60 deg |
| Point Diameter | #1 |
| Applicable Materials | Alloy Steel, Carbon Steel, Cast Iron, Tool Steel |
Features
- Designed to produce center hole that serves as the seat or bearing surface for center on a machine
- Produces an ordinary 60 deg included angle center
