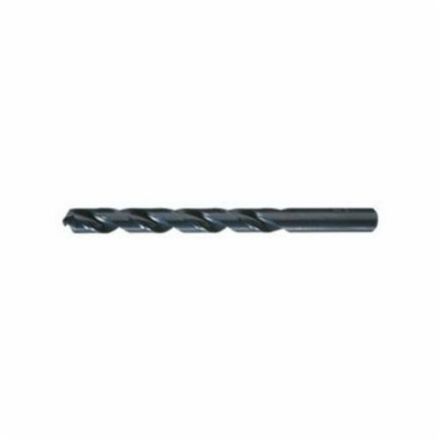

1899 1MM GP JOBBER BLKOX
- GLD# GREEN-115093
- MFG# C22793
Min. Order Qty 1
Description
Cle-Line foret longueur jobber, gamme : 1899, métrique/impérial, 1 mm foret - métrique, 0,0394 po foret - pouce décimal, 34 mm de longueur hors tout, profondeur de coupe 5xd, 2 goujures, droite goujure hélicoïdale , 12 mm goujure longueur, 1 mm diam. x 21 mm l queue, queue droite, 118 deg pointe, pointe radiale, coupe à droite, tranchant hss, liquide de refroidissement non traversant, hss, oxyde noir, matériaux applicables : acier allié, acier au carbone, acier à faible teneur en carbone, fonte grise, fonte nodulaire et aluminium
Specifications
| UNSPSC | 23241606 |
|---|---|
| Application | General Purpose Drilling and Maintenance Applications |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.0394 in |
| Finish | Black Oxide |
| Flute Length | 12 mm |
| Flute Type | Right Spiral |
| Material | HSS |
| Overall Length | 34 mm |
| Point Type | Radial |
| Series | 1899 |
| Shank Size | 1 mm Dia x 21 mm L |
| Shank Type | Straight |
| Drill Diameter Measurement System | Metric/Imperial |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | Yes |
| Drill Size - Metric | 1 mm |
| Point Angle | 118 deg |
| Applicable Materials | Alloy Steel, Aluminum, Carbon Steel, Gray Cast Iron, Low Carbon Steel, Nodular Cast Iron |
Features
- HSS substrate with general purpose geometry
- Black oxide finish for increased wear resistance and improved lubricity
