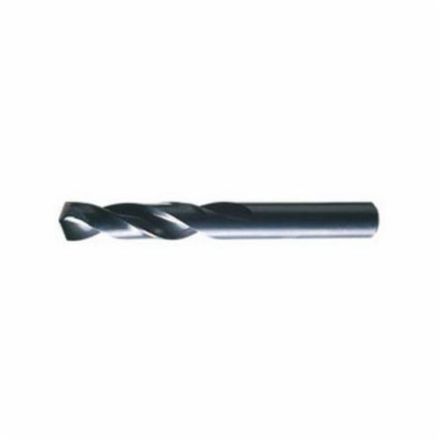

FORET 3/8 HEAVY DUTY COURT
- GLD# 4190434548150381023
- MFG# C23480
- UPC 697334234807
Min. Order Qty 1
Description
Cle-Line Visseuse foret, usage général à toute épreuve, gamme : 1896, impérial, 3/8 po foret - fraction, 0.375 po foret - pouce décimal, 3-1/8 po de longueur totale, 3xd profondeur de coupe, 2 goujures, droite goujure hélicoïdale, 1-13/16 po goujure longueur, 3/8 po diam. x 1-5/16 po l queue, queue droite, 135 deg point, split point, coupe à droite, tranchant hss, hss, noir oxyde, matériaux applicables : acier allié, acier au carbone, fonte grise, acier à faible teneur en carbone et fonte nodulaire
Specifications
| UNSPSC | 23241606 |
|---|---|
| Application | For general purpose drilling applications |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.375 in |
| Drill Size - Fraction | 3/8 in |
| Finish | Black Oxide |
| Flute Length | 1-13/16 in |
| Flute Type | Right Spiral |
| Material | HSS |
| Overall Length | 3-1/8 in |
| Point Type | Split |
| Series | 1896 |
| Shank Size | 3/8 in Dia x 1-5/16 in L |
| Shank Type | Straight |
| Type | General Purpose Heavy Duty |
| Drill Diameter Measurement System | Imperial |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | No |
| Point Angle | 135 deg |
| Applicable Materials | Alloy Steel, Carbon Steel, Gray Cast Iron, Low Carbon Steel, Nodular Cast Iron |
Features
- 135 deg split point for faster, easier drill penetration
- HSS substrate and heavy duty geometry
- Short flutes for rigid, strong tools
- Black oxide finish for increased wear resistance and improved lubricity, reduces chip welding and galling
- Superior rigidity in hand or machine drilling
