Manufacturer
Greenfield Industries

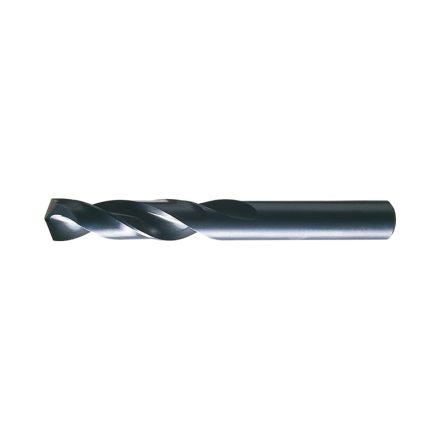

1621 1/8 HS BLKOX HD SCRW MACH LGTH
- GLD# 4198242609440563005
- MFG# C68495
- UPC 697334684954
Estimated Delivery Time
24 to 48h
31 in stock
$1.87 / each
Already a customer?
Access your exclusive rates by logging in.
Min. Order Qty 1
Description
Machine à vis cle-force foret, usage général à toute épreuve, gamme : 1621, impérial, 1/8 po foret - fraction, 0.125 po foret - pouce décimal, 1-7/8 po longueur hors tout, profondeur de coupe 7/8 po, 2 goujures, à droit goujure hélicoïdale, 7/8 po goujure longueur, 1/8 po diam. X 1 po l queue, queue droite, 135 deg point, point de partage, coupe à droite, tranchant hss, hss, oxyde noir, matériaux applicables : acier allié, acier au carbone, acier à faible teneur en carbone, fonte grise et fonte nodulaire
Specifications
| UNSPSC | 23241606 |
|---|---|
| Application | Asme b94.11m|din 340 |
| Cutting Depth | 7/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.125 in |
| Drill Size - Fraction | 1/8 in |
| Finish | Black Oxide |
| Flute Length | 7/8 in |
| Flute Type | Right Spiral |
| Material | HSS |
| Overall Length | 1-7/8 in |
| Point Type | Split |
| Series | 1621 |
| Shank Size | 1/8 in Dia x 1 in L |
| Shank Type | Straight |
| Type | General Purpose Heavy Duty |
| Drill Diameter Measurement System | Imperial |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | No |
| Point Angle | 135 deg |
| Applicable Materials | Alloy Steel, Carbon Steel, Gray Cast Iron, Low Carbon Steel, Nodular Cast Iron |
Features
- 135 deg split point for faster, easier drill penetration
- HSS substrate and heavy duty geometry
- Short flutes for rigid, strong tools
- Black oxide finish for increased wear resistance and improved lubricity, reduces chip welding and galling
- Superior rigidity in hand or machine drilling
Guides & Manuals
Cle_Force_C01112_Catalog.pdf
Download
