Brand
Chicago-Latrobe®

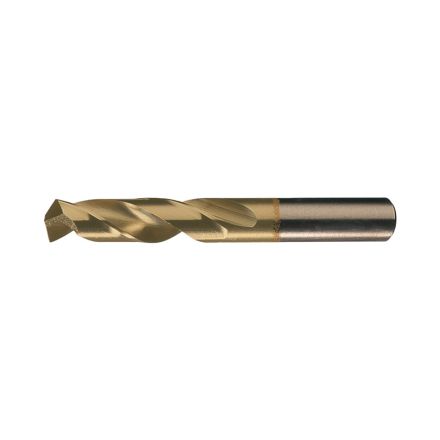

FORET 1/4 COBALT SCR MACH TlN
- GLD# 4295538967590219000
- MFG# 51813
- UPC 662355518137
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description
Chicago-Latrobe® Screw Machine Drill, Heavy Duty, Series: 559-TN/2559, Imperial, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 2-1/2 in Overall Length, 1-3/8 in Cutting Depth, 2 Flutes, Right Spiral Flute, 1-3/8 in Flute Length, 1/4 in Dia x 1-1/8 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, TiN Coated, Applicable Materials: Carbon Steel, Cast Iron and Tool Steel
Specifications
| UNSPSC | 23241606 |
|---|---|
| Cutting Depth | 1-3/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8 |
| Drill Size - Decimal Inch | 0.25 in |
| Drill Size - Fraction | 1/4 in |
| Finish | TiN Coated |

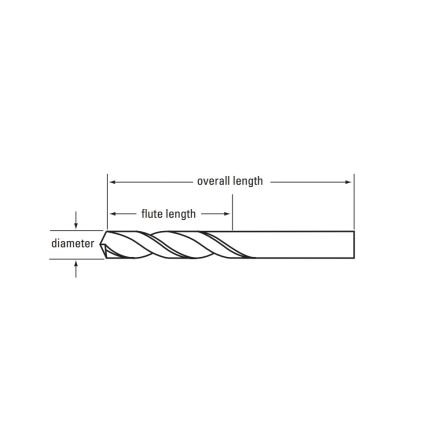

| Flute Length | 1-3/8 in |
| Flute Type | Right Spiral |
| Material | M42 HSS-Co 8 |
| Overall Length | 2-1/2 in |
| Point Type | Split |
| Series | 559-TN/2559 |
| Shank Size | 1/4 in Dia x 1-1/8 in L |
| Shank Type | Straight |
| Type | Heavy Duty |
| Drill Diameter Measurement System | Imperial |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | No |
| Point Angle | 135 deg |
| Applicable Materials | Carbon Steel, Cast Iron, Tool Steel |
Features
- Heavy duty geometry for drilling tougher materials by hand or machine
- Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates
- P3 split point is self-centering for reduced thrust and easier penetration
- Titanium nitride (TiN) PVD coating adds lubricity and hardness which enhances chip flow, finish hole quality and drill life
