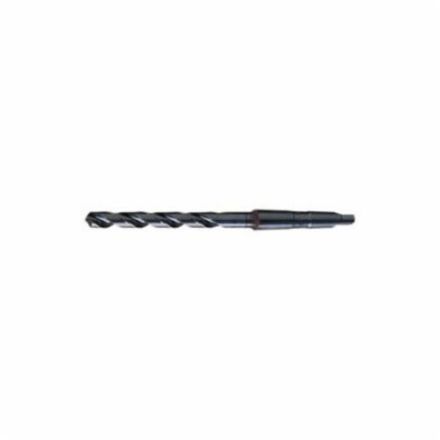

BIT DR SHK TPR 13/16IN 0.8125IN #3 MORT
- GLD# 9908380
- MFG# C20552
- UPC 697334205524
Min. Order Qty 1
Description
Cle-Line foret à queue conique foret, usage général Hélice ordinaire, gamme : 1894, impérial, 13/16 po foret - fraction, 0,8125 po foret - pouce décimal, 10-3/4 po de longueur totale, 6-1/8 po de profondeur de coupe, 2 goujures, goujure hélicoïdale, 6-1/8 po de goujure longueur, #3 cône Morse queue conique désignation, 118 deg pointe, pointe radiale, coupe à droite, tranchant hss, liquide de refroidissement non traversant, hss, oxyde noir, matériaux applicables : acier allié, acier au carbone, acier à faible teneur en carbone, fonte grise et fonte nodulaire
Specifications
| UNSPSC | 23241606 |
|---|---|
| Application | For portable drilling and maintenance applications |
| Cutting Depth | 6-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.8125 in |
| Drill Size - Fraction | 13/16 in |
| Finish | Black Oxide |
| Flute Length | 6-1/8 in |
| Flute Type | Spiral |
| Material | HSS |
| Overall Length | 10-3/4 in |
| Point Type | Radial |
| Series | 1894 |
| Type | General Purpose Regular Helix |
| Drill Diameter Measurement System | Imperial |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | Yes |
| Shank Taper Designation | #3 Morse Taper |
| Point Angle | 118 deg |
| Applicable Materials | Alloy Steel, Carbon Steel, Gray Cast Iron, Low Carbon Steel, Nodular Cast Iron |
Features
- HSS substrate engineered for toughness and ideal for portable drilling and maintenance applications
- Black oxide finish for increased wear resistance and improved lubricity, reduced chip welding and galling
