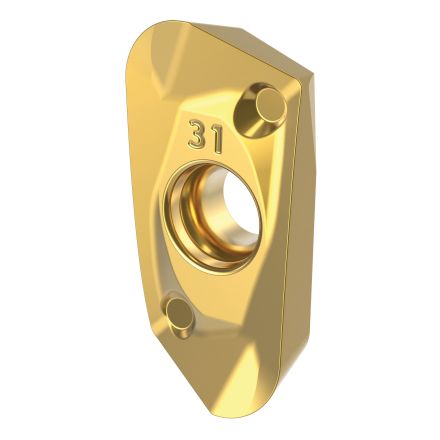

PASTILLE EC1408ELDJ KC422M
- GLD# 1000019070
- MFG# 3324994
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description
Plaquette de fraisage Kennametal, 2 tranchants, gamme : fraise 1-10, plaquette ec, plaquette 1408, 75 deg diamanté, 0.177 po dépaisseur, 0.334 po largeur, 0.688 po longueur, 0.031 à rayonne de bec, 75 deg angle dattaque, grade du fabricant : kc422m, code ansi : ec1408eldj kc422m, code iso : edct140408pderldj kc422m, main droit, carbure, revêtement pvd-tib2, APPLICATION de matériaux en aluminium et non-ferrous metals
Specifications
| UNSPSC | 23291601 |
|---|---|
| Application | For roughing and finishing of aluminum alloys |
| ANSI Code | EC1408ELDJ KC422M |
| Finish | PVD-TiB2 Coated |
| Hand of Insert | Right |
| ISO Code | EDCT140408PDERLDJ KC422M |
| Insert Size | 1408 |
| Insert Style | EC |
| Length | 0.688 in |
| Manufacturer's Grade | KC422M |
| Material | Carbide |
| Series | Mill 1-10™ |
| Shape | 75 deg Diamond |
| Thickness | 0.177 in |
| Type | 2-Cutting Edge |
| Corner Radius | 0.031 in |
| Width | 0.334 in |
| Lead Angle | 75 deg |
| Through Coolant (Yes/No) | No |
| Manufacturers Grade | KC422M |
| Material Application | Aluminum, Non-Ferrous Metals |
Features
- Periphery ground and polished rake face
- Perfect floor surface finish
- 0.551 in (14 mm) max depth of cut
