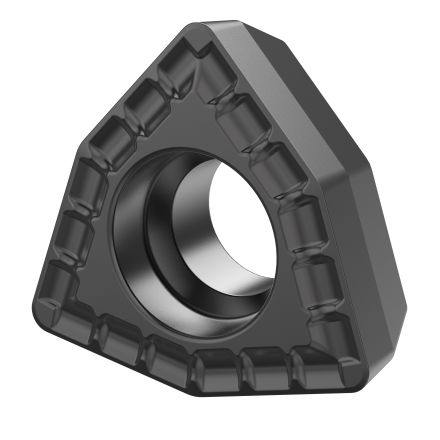

PASTILLE DFT090508HP KC7140
- GLD# 1000020475
- MFG# 1805013
Min. Order Qty 1
Description
Kennametal Plaquette foret, indexable, gamme : drill fix, insert DFT, insert 090508, trigone, cercle inscrit 15 mm, 5.25 mm dépaisseur, 9.92 mm de longueur, HP brise-copeaux, 5.25 mm rayon de bec, 5.5 mm Dia de trou, qualité du fabricant : kc7140, 84 deg angle inclus, code ansi : dft090508hp kc7140, code iso : dft090508hp kc7140, à utiliser sur : fonte, alliages réfractaires, Non-Ferrous Metals, acier et aciers inoxydables, carbure, pvd-étain+revêtement ticn, grade de matériau : c5/c6
Specifications
| UNSPSC | 23291503 |
|---|---|
| ANSI Code | DFT090508HP KC7140 |
| Finish | PVD-TiN+TiCN Coated |
| Hole Diameter | 5.5 mm |
| ISO Code | DFT090508HP KC7140 |
| Insert Size | 090508 |
| Insert Style | DFT |
| Length | 9.92 mm |
| Manufacturer's Grade | KC7140 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Series | Drill fix™ |
| Shape | Trigon |
| Thickness | 5.25 mm |
| Type | Indexable |
| Chipbreaker | HP |
| Corner Radius | 5.25 mm |
| Included Angle | 84 deg |
| Inscribed Circle | 15 mm |
| Through Coolant (Yes/No) | No |
| Manufacturers Grade | KC7140 |
| For Use On | Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Stainless Steels, Steel |
Features
- High positive chipbreaker geometry preferred on ductile and normal chipping materials
