PASTILLE A2030N00CF02 KC5025
- GLD# 4313042668140829235
- MFG# 1790193
Min. Order Qty 1
Description

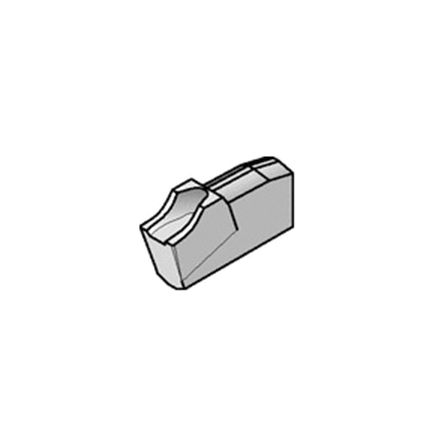

Kennametal Insert à tronçonner , jeu : a2, plaquette a2, plaquette 3, largeur de coupe 3 mm, sens dangle dattaque neutre, angle 2 deg dégagement, largeur 3 mm, cf brise-copeaux, 0.2 mm rayon de bec, qualité constructeur : kc5025, code ansi : a2030n00cf02 kc5025, code iso : a2030n00cf02 kc5025, main neutre, carbure, revêtement pvd-altin, grade de matériau : c2/c6
Specifications
| UNSPSC | 23291503 |
|---|---|
| ANSI Code | A2030N00CF02 KC5025 |
| Finish | PVD-AlTiN Coated |
| Hand of Insert | Neutral |
| ISO Code | A2030N00CF02 KC5025 |
| Insert Size | 3 |
| Insert Style | A2 |
| Manufacturer's Grade | KC5025 |
| Material | Carbide |
| Material Grade | C2/C6 |
| Series | A2™ |
| Chipbreaker | CF |
| Corner Radius | 0.2 mm |
| Width | 3 mm |
| Relief Angle | 2 deg |
| Cutting Width | 3 mm |
| Lead Angle Direction | Neutral |
| Through Coolant (Yes/No) | No |
| Manufacturers Grade | KC5025 |
