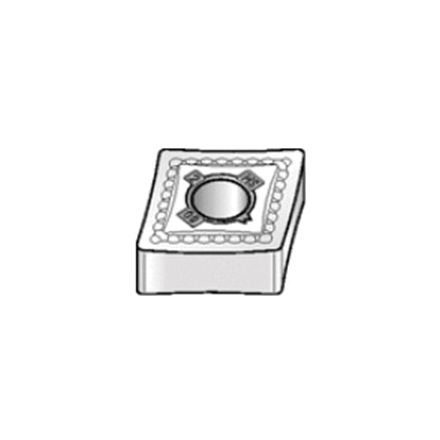

PASTILLE CNMG431MS KCU25
- GLD# KEN-127317
- MFG# 4050402
Min. Order Qty 1
Description
Kennametal Plaquette de tournage , gamme : kenloc, insert cnmg, insert 120404, rhomboïde, 12.Cercle inscrit de 7 mm, 4.76 mm dépaisseur, 12.9 mm de longueur, brise-copeaux ms, 0.4 mm rayon de bec, 5.16 mm Dia de trou, qualité du fabricant : kcu25, code ansi : cnmg431ms kcu25, code iso : cnmg120404ms kcu25, angle 80 deg inclus, angle 0 deg dégagement, coupe neutre, carbure, revêtement pvd-altin, à utiliser sur : fonte, alliages haute température, Non-Ferrous Metals, acier et acier inoxydable
Specifications
| UNSPSC | 23242105 |
|---|---|
| ANSI Code | CNMG431MS KCU25 |
| Finish | PVD-AlTiN Coated |
| Hole Diameter | 5.16 mm |
| ISO Code | CNMG120404MS KCU25 |
| Insert Size | 120404 |
| Insert Style | CNMG |
| Length | 12.9 mm |
| Manufacturer's Grade | KCU25 |
| Material | Carbide |
| Series | Kenloc™ |
| Shape | Rhomboid |
| Thickness | 4.76 mm |
| Chipbreaker | MS |
| Corner Radius | 0.4 mm |
| Included Angle | 80 deg |
| Inscribed Circle | 12.7 mm |
| Relief Angle | 0 deg |
| Cutting Direction | Neutral |
| Through Coolant (Yes/No) | No |
| Manufacturers Grade | KCU25 |
| For Use On | Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Stainless Steel, Steel |
Features
- Medium geometry utilized in high temperature and stainless applications
