Manufacturer
Kennametal

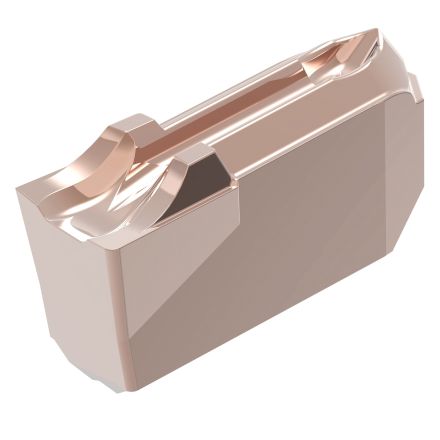

INSERT EC040M04N00CF02 KCU25
- GLD# KEN-141808
- MFG# 5941076
Estimated Delivery Time
24 to 48h
5 in stock
$31.54 / each
Already a customer?
Access your exclusive rates by logging in.
Min. Order Qty 1
Description
Kennametal Insert à tronçonner , jeu : Beyond revolution, plaquette ec, plaquette 4, largeur de coupe 4 mm, direction dangle dattaque neutre, angle 2 deg dégagement, largeur 4 mm, 10.longueur 19 mm, cf brise-copeaux, 0.2 mm rayon de bec, qualité constructeur : kcu25, code ansi : ec040m04n00cf02 kcu25, code iso : ec040m04n00cf02 kcu25, main neutre, carbure, revêtement pvd-altin, grade de matériau : c2/c6
Specifications
| UNSPSC | 23291503 |
|---|---|
| ANSI Code | EC040M04N00CF02 KCU25 |
| Finish | PVD-AlTiN Coated |
| Hand of Insert | Neutral |
| ISO Code | EC040M04N00CF02 KCU25 |
| Insert Size | 4 |
| Insert Style | EC |
| Length | 10.19 mm |
| Manufacturer's Grade | KCU25 |
| Material | Carbide |
| Material Grade | C2/C6 |
| Series | Beyond™ Evolution™ |
| Chipbreaker | CF |
| Corner Radius | 0.2 mm |
| Width | 4 mm |
| Relief Angle | 2 deg |
| Cutting Width | 4 mm |
| Lead Angle Direction | Neutral |
| Through Coolant (Yes/No) | No |
| Manufacturers Grade | KCU25 |
Features
- Positive chipbreaker lowers cutting forces
- First choice for steel and stainless steel
- Excellent surface finish
