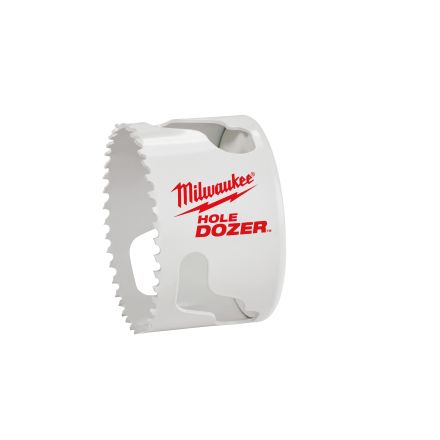

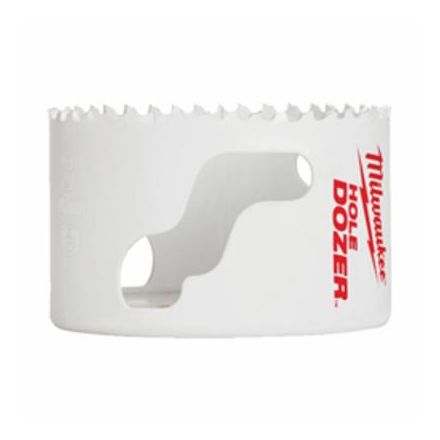

SCIE-CLOCHE HOLE DOZER, DIAMÈTRE IMPÉRIAL, 1-11/16", PROFONDEUR DE LA COUPE, 1-5/8", MATÉRIAU, BIMÉTAL
- GLD# MIL-114333
- MFG# 49-56-9620
- UPC 045242222490
Min. Order Qty 1
Description
Milwaukee scie cloche, gamme : hole dozer, 1-11/16 po diam., 1-5/8 po profondeur de coupe, 4/5 tpi, 43228 arbre, 1/4 po diam. X 3-1/2 po perceuse en équerre, tranchant bimétal/cobalt, corps bimétallique, tranchant denté, 305 tr/min aluminium, 135 tr/min fonte, 205 tr/min doux acier, acier inoxydable 100 tr/min, utiliser arbre : 49-56-7210, 49-56-7240, 49-56-7250 et 49-56-9100 à changement rapide arbre, matériaux applicables : aluminium, fonte, acier doux et acier inoxydable
Specifications
| UNSPSC | 27112826 |
|---|---|
| Body Material | Bi-Metal |
| Cutting Edge Material | Bi-Metal/Cobalt |
| Arbor Size | 3/8 in |
| Diameter | 1-11/16 in |
| TPI or Pitch | 3.5 TPI |
| Use Arbor | 49-56-7210/49-56-7240/49-56-7250 and 49-56-9100 |
| Cutting Depth | 1-5/8 in |
| Drill Size | 1/4 in Dia x 3-1/2 in L |
| Cutting Edge Style | Toothed |
| Speed | 305 rpm Aluminum/135 rpm Cast Iron/205 rpm Mild Steel/100 rpm Stainless Steel |
| Applicable Materials | Aluminum, Cast Iron, Mild Steel, Stainless Steel |
Features
- Rip Guard™ the strongest tooth form in the industry
- Plug Jack™, an all access slot design for fast plug removal
- Bi-metal construction with 8% cobalt for increased wear resistance
- Ice Hardened™ for up to 50% longer life than the competition
- Optimized tooth form for up to 2X faster cutting
- Wide, angled and offset slots for easy plug access
