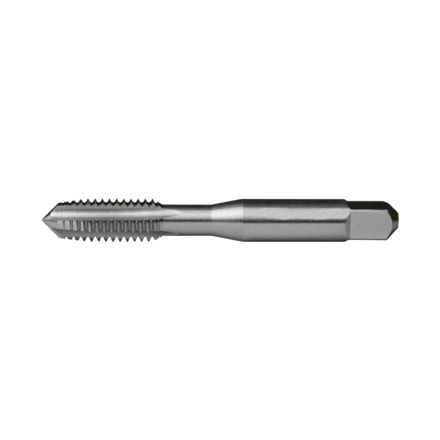

GREENFIELD 1002-M5X.80 (C54375) TAP HD FLUTE STR RH M5X0.8 D4 PLUG 4 BRT
- GLD# 4180053277430403000
- MFG# C54375
- UPC 697334543756
Min. Order Qty 1
Description
Cleveland taraud à main à goujure droite, norme à usage général, gamme : 1002, système de mesure : métrique, norme de filetage au sol, m5x0.8 fils, intermédiaire, 4 goujures, hss, brillant, classe dajustement : 6h, coupe à droite, 12.Longueur de filetage 7 mm, 60.45 mm de longueur hors tout, 4.93 mm queue de diamètre, fonte, acier, application de matériaux en acier inoxydable et matériaux non ferreux, limite de filetage d4
Specifications
| Application | For blind hole applications |
|---|---|
| Chamfer Type | Plug |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | HSS |
| Measurement System | Metric |
| Number of Flutes | 4 |
| Overall Length | 60.45 mm |
| Series | 1002 |
| Shank Diameter | 4.93 mm |
| Thread Length | 12.7 mm |
| Thread Limit | D4 |
| Thread Size | M5x0.8 |
| Thread Standard | Ground |
| Type | General Purpose Standard |
| Class of Fit | 6H |
| Through Coolant (Yes/No) | No |
| Adjustable Die (Yes/No) | No |
| Material Application | Cast Iron, Non-Ferrous Materials, Stainless Steel, Steel |
| UNSPSC | 23241615 |
