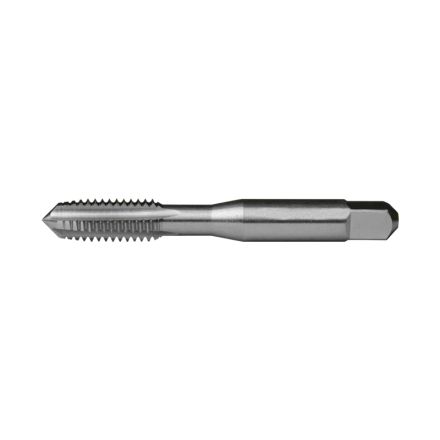

TARAUD 5/8-11UNC plug
- GLD# 4342448971510966000
- MFG# C54780
- UPC 697334547808
Min. Order Qty 1
Description
Cleveland taraud à main à goujure droite, norme à usage général, gamme : 1002, système de mesure : impérial, filetage rectifié/unc standard, filetage 5/8-11, intermédiaire, 4 goujures, hss, brillant, classe dajustement : 2b, coupe à droite, 1,09 po de longueur de filetage, 3,81 po de longueur totale, 0,48 po de queue diamètre, application de matériaux en fonte, acier, acier inoxydable et matériaux non ferreux, limite de filetage h3
Specifications
| Application | For blind hole applications |
|---|---|
| Chamfer Type | Plug |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | HSS |
| Measurement System | Imperial |
| Number of Flutes | 4 |
| Overall Length | 3.81 in |
| Series | 1002 |
| Shank Diameter | 0.48 in |
| Thread Length | 1.09 in |
| Thread Limit | H3 |
| Thread Size | 5/8-11 |
| Thread Standard | Ground/UNC |
| Type | General Purpose Standard |
| Class of Fit | 2B |
| Through Coolant (Yes/No) | No |
| Adjustable Die (Yes/No) | No |
| Material Application | Cast Iron, Non-Ferrous Materials, Stainless Steel, Steel |
| UNSPSC | 23241615 |
