Manufacturer
Greenfield Industries

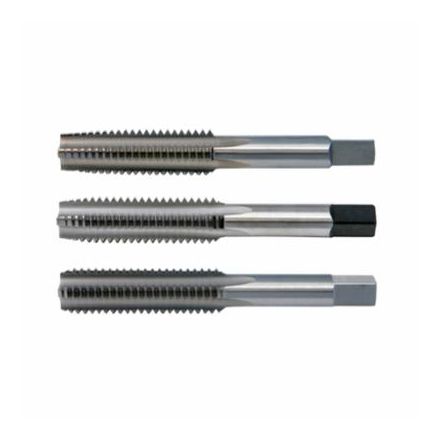

TAP 1/4-28 KIT
- GLD# 4181857320090123000
- MFG# C62036
- UPC 697334620365
Estimated Delivery Time
24 to 48h
2 in stock
$30.02 / each
Already a customer?
Access your exclusive rates by logging in.
Min. Order Qty 1
Description
Cle-Line main jeu de tarauds, standard goujure droite queue droite, gamme : 404, système de mesure : impérial, 3 pièces, taille 1/4-28, filetage standard, 1 po de longueur de filetage, 2-1/2 po de longueur totale, 4 goujures, coupe à droite, 0,255 po queue diamètre, fond/bouchon/chanfrein conique, limite de filetage h3, 0,3125 po l x 0,191 po l carré, hss, brillant, type demballage unibox rose plastic
Specifications
| Application | For maintenance applications |
|---|---|
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | HSS |
| Measurement System | Imperial |
| Number of Flutes | 4 |
| Overall Length | 2-1/2 in |
| Series | 404 |
| Shank Diameter | 0.255 in |
| Thread Length | 1 in |
| Thread Limit | H3 |
| Thread Standard | UNF |
| Type | Standard Straight Flute Straight Shank |
| Number of Pieces | 3 |
| Package Type | Rose Plastic® UniBox |
| Size | 1/4-28 |
| Square Size | 0.3125 in L x 0.191 in W |
| Through Coolant (Yes/No) | No |
| Adjustable Die (Yes/No) | No |
| Chamfer | Bottoming, Plug, Taper |
| UNSPSC | 23241615 |
Features
- Ground thread for economical tapping
- Taper chamfer generally used for hand operations
- Plug chamfer for general purpose applications
- Bottoming chamfer used to thread close to an obstruction or blind hole
