Manufacturer
Greenfield Industries

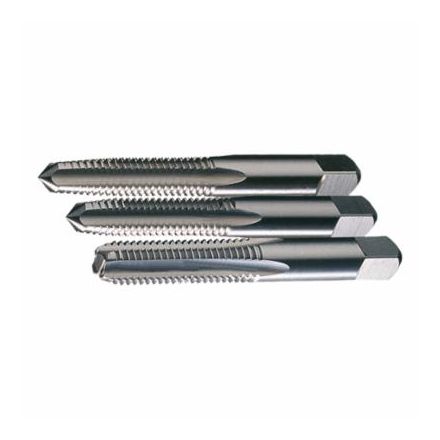

ENSEMBLE DE TARAUD 3/8-16NC SET
- GLD# 4188549129320360013
- MFG# C69126
- UPC 697334691266
Estimated Delivery Time
24 to 48h
1 in stock
$37.47 / each
Already a customer?
Access your exclusive rates by logging in.
Min. Order Qty 1
Description
Cle-Force main jeu de tarauds, standard goujure droite queue droite, gamme : 1693, système de mesure : impérial, 3 pièces, taille 3/8-16, filetage standard unc, longueur de filetage 1-1/4 po, longueur totale 2-15/16 po, 4 goujures, coupe à droite, 0,381 po queue de diamètre, fond/bouchon/chanfrein conique, 0,4375 po l x 0,286 po l carré, hss, brillant, type demballage en plastique générique
Specifications
| Application | For general purpose applications |
|---|---|
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | HSS |
| Measurement System | Imperial |
| Number of Flutes | 4 |
| Overall Length | 2-15/16 in |
| Series | 1693 |
| Shank Diameter | 0.381 in |
| Thread Length | 1-1/4 in |
| Thread Standard | UNC |
| Type | Standard Straight Flute Straight Shank |
| Number of Pieces | 3 |
| Package Type | Generic Plastic Case |
| Size | 3/8-16 |
| Square Size | 0.4375 in L x 0.286 in W |
| Through Coolant (Yes/No) | No |
| Adjustable Die (Yes/No) | No |
| Chamfer | Bottoming, Plug, Taper |
| UNSPSC | 23241615 |
Features
- Ground thread for economical tapping
- Taper chamfer generally used for hand operations
- Plug chamfer for general purpose applications
- Bottoming chamfer used to thread close to an obstruction or blind hole
Guides & Manuals
Cle_Force_C17760_Catalog.pdf
Download
