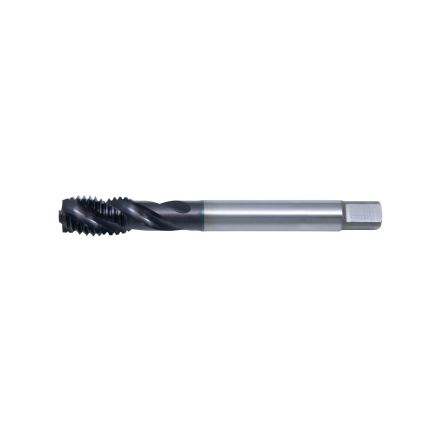

M8x1.25 DIN HSSE 3FLT UNI SPFL 6H Black Oxide PRO-981SF
- GLD# GREEN-128675
- MFG# C98141
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description
Cleveland taraud à pointe spiral, haute performance universel, gamme : pro-981sf, système de mesure : métrique, standard à filetage rectifié/gros, m8x1.25 filetage, chanfrein semi-fond, 3 goujures, hss-e, oxyde de vapeur, classe dajustement : 6h, coupe à droite, longueur de fil de 18 mm, longueur totale 90 mm, 8.08 mm de diamètre queue, 9.65 mm file dattente longueur, acier, acier inoxydable, matériaux non ferreux et durs APPLICATION matérielle

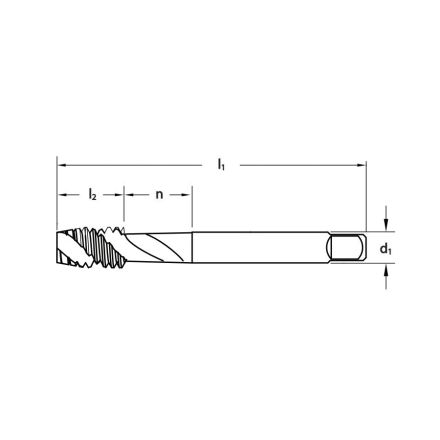

Specifications
| Application | For blind hole applications |
|---|---|
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Finish/Coating | Steam Oxide |
| Material | HSS-E |
| Measurement System | Metric |
| Number of Flutes | 3 |
| Overall Length | 90 mm |
| Series | PRO-981SF |
| Shank Diameter | 8.08 mm |
| Thread Length | 18 mm |
| Thread Size | M8x1.25 |
| Thread Standard | Ground/Coarse |
| Type | High Performance Universal |
| Shank Length | 9.65 mm |
| Class of Fit | 6H |
| Through Coolant (Yes/No) | No |
| Adjustable Die (Yes/No) | No |
| Material Application | Hard Materials, Non-Ferrous, Stainless Steel, Steel |
| UNSPSC | 23241615 |
