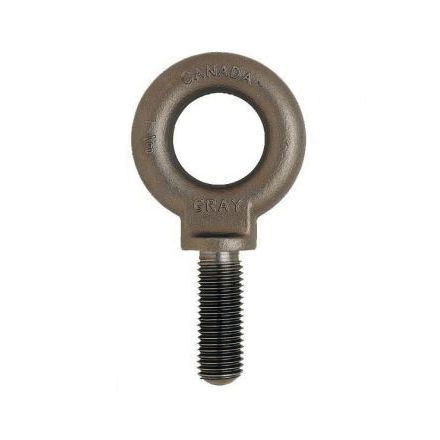

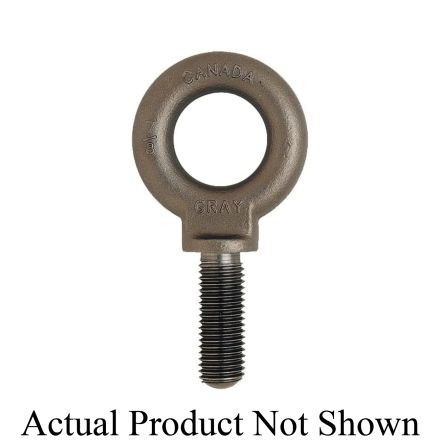

BOULON A OEIL FILETE 1/4
- GLD# 4171560087110124000
- MFG# BS08
- UPC 067965003248
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description
Gray Tools boulon à œil, unicolore à épaulement, système de mesure : impérial, fil 1/4-20, longueur 1 po queue, acier au carbone forgé, sans revêtement/non enduit, 3/4 po di à œil, 1-3/16 po dia ext à œil, fil unc-2a, 2-3/8 po de longueur totale, 650 lb de charge de travail, 1 po de longueur de filetage, 65000 lb/po-ca de résistance à la traction, catégorie c1030
Specifications
| UNSPSC | 31161610 |
|---|---|
| Diameter - Thread Size | 1/4-20 |
| Finish | Uncoated |
| Grade | C1030 |
| Inside Eye Diameter | 3/4 in |
| Material | Forged Carbon Steel |
| Measurement System | Imperial |
| Outside Eye Diameter | 1-3/16 in |
| Overall Length | 2-3/8 in |
| Shank Length | 1 in |
| Tensile Strength | 65000 psi |
| Thread Length | 1 in |
| Thread Type | UNC-2A |
| Type | Self-Colored Shoulder Pattern |
Features
- Rated capacity: 650 lbs.
- Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
- Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
- Never apply loads greater than rated capacity to any eyebolt
