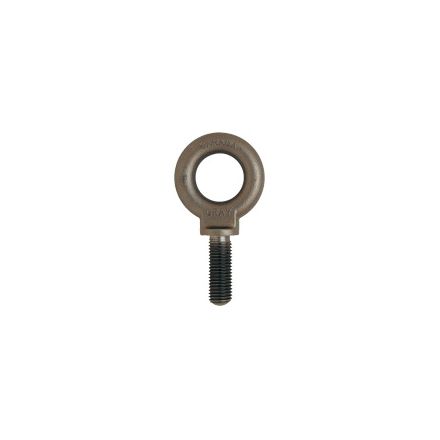

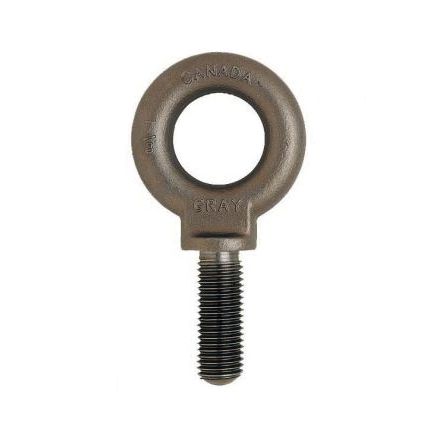

BOULON A OEIL FILETE 7/8
- GLD# 4171560653530124000
- MFG# BS28
- UPC 067965003323
Min. Order Qty 1
Description
Gray Tools boulon à œil, unicolore à épaulement, système de mesure : impérial, fil 7/8-9, longueur 2-1/4 po queue, acier au carbone forgé, sans revêtement/non enduit, 1-11/16 po di à œil, 3-3/16 po dia ext à œil, unc- filetage 2a, longueur totale 5-31/32 po, charge de travail de 10600 lb, longueur de filetage 2-1/4 po, résistance à la traction 65000 lb/po-ca, catégorie c1030
Specifications
| UNSPSC | 31161610 |
|---|---|
| Diameter - Thread Size | 7/8-9 |
| Finish | Uncoated |
| Grade | C1030 |
| Inside Eye Diameter | 1-11/16 in |
| Material | Forged Carbon Steel |
| Measurement System | Imperial |
| Outside Eye Diameter | 3-3/16 in |
| Overall Length | 5-31/32 in |
| Shank Length | 2-1/4 in |
| Tensile Strength | 65000 psi |
| Thread Length | 2-1/4 in |
| Thread Type | UNC-2A |
| Type | Self-Colored Shoulder Pattern |
Features
- Rated capacity: 10,600 lbs.
- Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
- Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
- Never apply loads greater than rated capacity to any eyebolt
