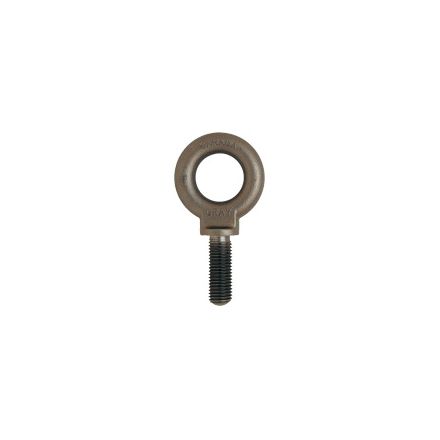

BOULON A OEIL FILETE 5/16
- GLD# 4335848668040403000
- MFG# BS10
- UPC 067965003255
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description
Gray Tools boulon à œil, unicolore à épaulement, système de mesure : impérial, filetage 5/16-18, longueur 1-1/8 po queue, acier au carbone forgé, 7/8 po di à œil, 1-7/16 po dia ext à œil, fil unc-2a, longueur totale 2-13/16 po, charge de travail de 1200 lb, longueur de filetage 1-1/8 po, résistance à la traction de 65000 lb/po-ca, catégorie c1030
Specifications
| UNSPSC | 31161610 |
|---|---|
| Diameter - Thread Size | 5/16-18 |
| Grade | C1030 |
| Inside Eye Diameter | 7/8 in |
| Material | Forged Carbon Steel |
| Measurement System | Imperial |
| Outside Eye Diameter | 1-7/16 in |
| Overall Length | 2-13/16 in |
| Shank Length | 1-1/8 in |
| Tensile Strength | 65000 psi |
| Thread Length | 1-1/8 in |
| Thread Type | UNC-2A |
| Type | Self-Colored Shoulder Pattern |
Features
- Rated capacity: 1,200 lbs.
- Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
- Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
- Never apply loads greater than rated capacity to any eyebolt
