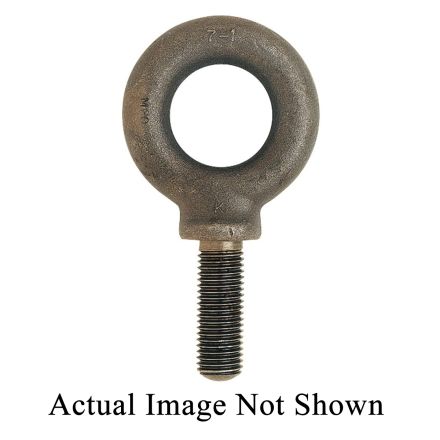

BOULON A OEIL FILETE M24
- GLD# 9924151
- MFG# BS24M
- UPC 067965034402
Min. Order Qty 1
Description
Gray Tools boulon à œil, à épaulement non-galvanisé, système de mesure : métrique, taille de filetage m24x3, 63.5 mm queue longueur, acier au carbone forgé, sans revêtement/non enduit, 44 mm de diamètre intérieur à œil, 90.4 mm de diamètre extérieur à œil, unc-2a, 168.Longueur totale 3 mm, 3850/8470 lb de travail, 63.Longueur de filetage 5 mm, 65000 lb/po-ca de traction, noter : c1030, spécification matérielle : ansi b18.15, astm a489
Specifications
| Diameter - Thread Size | M24x3 |
|---|---|
| Finish | Uncoated |
| Grade | C1030 |
| Inside Eye Diameter | 44 mm |
| Material | Forged Carbon Steel |
| Material Specification | ANSI B18.15, ASTM A489 |
| Measurement System | Metric |
| Outside Eye Diameter | 90.4 mm |
| Overall Length | 168.3 mm |
| Shank Length | 63.5 mm |
| Tensile Strength | 65000 psi |
| Thread Length | 63.5 mm |
| Thread Type | UNC-2A |
| Type | Self-Colored Shoulder Pattern |
| Working Load | 3850/8470 lb |
Features
- Never apply loads greater than rated capacity to any eyebolt
- Load should never be applied at more than a 45 deg angle from the bolt centerline
- The rated capacity is reduced to 25% when the load is applied at a 45 deg angle to the eyebolt centerline
