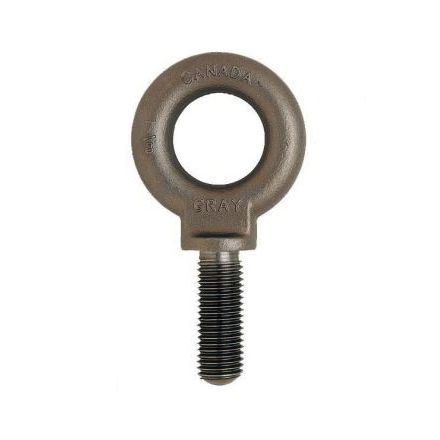

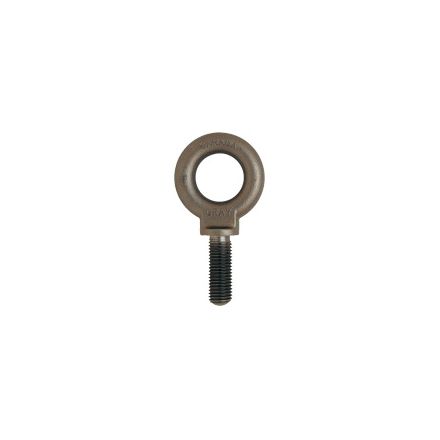

BOULON A OEIL A EMBASE SAE - 3/8-16
- GLD# 4171559982850124000
- MFG# BS12
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description
Gray Tools boulon à œil, unicolore à épaulement, système de mesure : impérial, fil 3/8-16, longueur 1-1/4 po queue, acier au carbone forgé, sans revêtement/non enduit, 1 po di à œil, 1-11/16 po dia ext à œil, unc-2a thread, 3 -9/32 po de longueur totale, charge de travail de 1550 lb, longueur de filetage de 1-1/4 po, résistance à la traction de 65000 lb/po-ca, catégorie c1030
Specifications
| Diameter - Thread Size | 3/8-16 |
|---|---|
| Finish | Uncoated |
| Grade | C1030 |
| Inside Eye Diameter | 1 in |
| Material | Forged Carbon Steel |
| Measurement System | Imperial |
| Outside Eye Diameter | 1-11/16 in |
| Overall Length | 3-9/32 in |
| Shank Length | 1-1/4 in |
| Tensile Strength | 65000 psi |
| Thread Length | 1-1/4 in |
| Thread Type | UNC-2A |
| Type | Self-Colored Shoulder Pattern |
Features
- Rated capacity: 1,550 lbs.
- Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
- Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
- Never apply loads greater than rated capacity to any eyebolt
