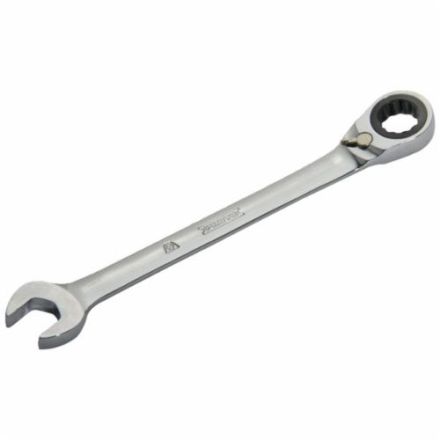

WR COMB REV RATG 12PT FP 1-1/16
- GLD# PROTO-105662
- MFG# JSCV34T
- UPC 662679114589
Min. Order Qty 1
Description
Clé mixte proto, cannelure réversible, système de mesure : impérial, clé à cliquet, ouverture clé 1-1/16 po, 12 points, 72 dents dentées, longueur totale 14-1/8 po, 15 deg à décalage, 2-1/4 po ouvert largeur, 5/16 po ouvert épaisseur, 2-1/16 po bout largeur, épaisseur 5/16 po bout, spécifications respectées : spécifié asme, acier forgé, entièrement poli
Specifications
| UNSPSC | 27111713 |
|---|---|
| Finish/Coating | Full Polished |
| Overall Length | 14-1/8 in |
| Specifications Met | ASME Specified |
| Type | Reversible Spline |
| Wrench Opening | 1-1/16 in |
| Box End Thickness | 5/16 in |
| Box End Width | 2-1/16 in |
| Material | Forged Steel |
| Measurement System | Imperial |
| Number of Points | 12 |
| Wrench Type | Ratcheting |
| Offset Angle | 15 deg |
| Open End Thickness | 5/16 in |
| Open End Width | 2-1/4 in |
| Number of Geared Teeth | 72 |
Features
- Fractional spline wrenches can be used on fractional 4, 6, 12 point, spline and Torx® fasteners
- The chrome vanadium switch lever allows for easy changes in turning direction which helps improve speed
- 15 deg angled offset box end helps keep shank clear of obstructions
- Anti-slip design (ASD) open end
- Full polish finish provides corrosion resistance and easy to clean surfaces
- Box end is countersunk for easy application to the fastener
- Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized
- Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to foreign object damage (FOD)
- The high contact surface area which is away from fastener points enables turning of highly rounded fasteners
