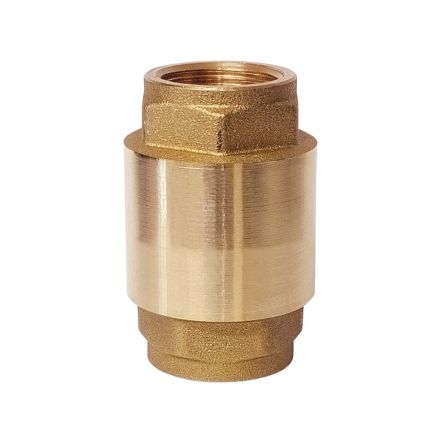

SOUPAPE DE RETENUE 1/4(F)NPT
- GLD# TOP-106783
- MFG# 85.710
- UPC 774679857103
Min. Order Qty 1
Description
TOPRING clapet anti-retour en ligne, gamme : s85, 1/4 po nominal, style de fin fnpt, pression de 200 lb/po-ca, -10 à 110 deg c, médias : air comprimé/gaz inertes/eau, corps en laiton, tige en laiton/broche/prise/adaptateur dextrémité/ressort en acier inoxydable 302/garniture de plaque, nbr caoutchouc synthétique rondelle softgoods, domestique/import : importer
Specifications
| UNSPSC | 40141622 |
|---|---|
| Application | Naval Industries, Aerospace, Alimentary, Manufacture of Industrial Equipment and Tools |
| Body Material | Brass |
| Domestic/Import | Import |
| End Style | FNPT |
| Media | Compressed Air/Inert Gases/Water |
| Nominal Size | 1/4 in |
| Pressure Rating | 200 psi |
| Softgoods Material | NBR Synthetic Rubber Washer |
| Temperature Rating | -10 to 110 deg C |
| Series | S85 |
| Trim Material | Brass Rod/Pin/Plug/End Adapter/302 Stainless Steel Spring/Plate |
Features
- Robust and corrosion resistant brass body
- Check valves allow free passage of fluid in one direction and lock in the other direction
- They protect compressed air networks against contamination
