Brand
Dixon®

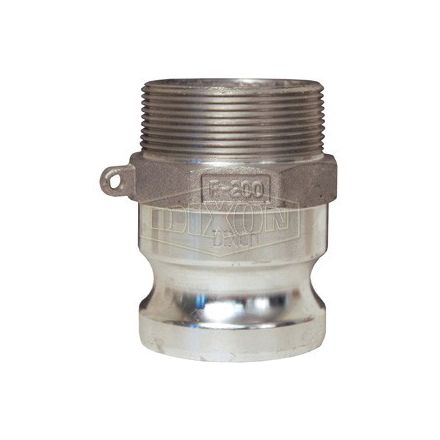

DIXON G600-F-AL TYPE F ADAPTATEUR À CAME ET RAINURE, 6 PO, ADAPTATEUR MÂLE X MNPT, ALUMINIUM, IMPORT
- GLD# 1000014219
- MFG# G600-F-AL
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description
Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 6 in Nominal Size, Male Adapter x MNPT, 4-27/32 in Length, 75 psi, Aluminum, 6-15/16 in Dia, Import
Specifications
| UNSPSC | 40141734 |
|---|---|
| Application | Designed for use with liquids |
| Domestic/Import | Import |
| End Style | Male Adapter x MNPT |
| Fitting/Connector Type | Adapter |
| Material | Aluminum |
| Nominal Size | 6 in |
| Pressure Rating | 75 psi |
| Type | Type F |
| Length | 4-27/32 in |
| Dimensions | 6-15/16 in Dia |
Features
- Designed to interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- For use with liquid
- A380 permanent mold aluminum
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 75 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
