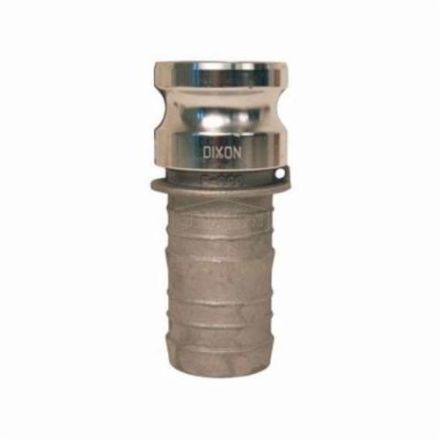

3/4" Part "E" Aluminum D: 76
- GLD# DIXON-120291
- MFG# G75-E-AL
Min. Order Qty 1
Description
Adaptateur à came et rainure dixon, type e, type de raccord/connecteur : adaptateur, taille nominale 3/4 po, adaptateur mâle x tuyau file dattente , 3-1/2 po longueur, 250 lb/po-ca, aluminium, domestique
Specifications
| Application | Designed for use with liquids |
|---|---|
| Domestic/Import | Domestic |
| End Style | Male Adapter x Hose Shank |
| Fitting/Connector Type | Adapter |
| Material | Aluminum |
| Nominal Size | 3/4 in |
| Pressure Rating | 250 psi |
| Type | Type E |
| Length | 3-1/2 in |
Features
- Produced to interchange with all product produced to commercial item description A-A-59326D
- A380 permanent mold aluminum
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
Guides & Manuals
Dixon_Valve_Coupling_G75-E-AL_Catalog.pdf
