COUDE,TUBE;90DEG;MALE;3/8PO TUBE X 1/4PO

GLD#
4233244018520625000
MFG#
69NAB64VS

Estimated Delivery Time

24 to 48h

Min. Order Qty 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

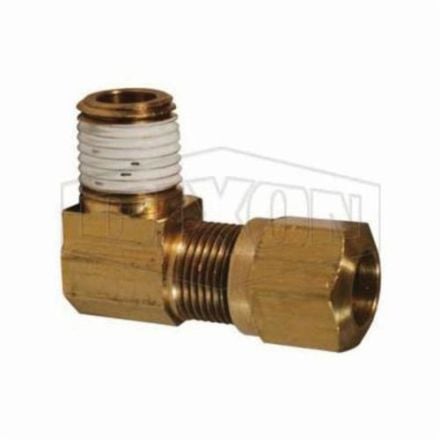

Dixon® Air Brake Elbow, Fitting/Connector Type: Elbow, 17/32-24 x 1/4 in Nominal, Straight Male x Pipe, 1-1/4 in Length, 150 psi, -40 to 200 deg F, Brass, Domestic

Specifications

More Information
UNSPSC	40172801
Material	Brass
Application	Air Brake Systems or Cab Controls
Pressure Rating	150 psi
End Style	Straight Male x Pipe
Domestic/Import	Domestic
Nominal Size	17/32-24 x 1/4 in
Temperature Rating	-40 to 200 deg F
Length	1-1/4 in
Fitting/Connector Type	90 deg Elbow

Features

Positive grip
Utilize ribbed sleeve for compression and positive grip
Compatible tubing: SAE J844 type A and B
Machined from CA260/CA345/CA377 brass construction
Pre-applied thread sealant
Thread sealant may be white or burnt orange
Wash hands after handling
