Manufacturer
Dixon Valve _ Coupling

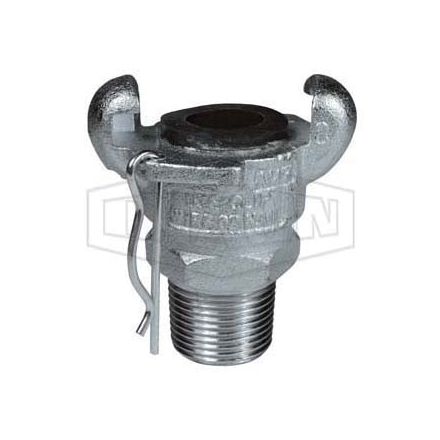

1/2 Air King Male W/Clips
- GLD# 4131736685730165000
- MFG# GAM2
Estimated Delivery Time
24 to 48h
5 in stock
$4.45 / each
Already a customer?
Access your exclusive rates by logging in.
Description
Dixon raccord dextrémité de tuyau, universel, gamme : global air KING, 1/2 po nominal, mnpt, 2-11/16 po de longueur, 31/32 po hex, 150 lb/po-ca, acier, plaqué, 2-1/2 po de largeur, domestique
Specifications
| UNSPSC | 40141734 |
|---|---|
| Application | For air and water service only |
| Domestic/Import | Domestic |
| End Style | MNPT |
| Finish | Plated |
| Material | Steel |
| Nominal Size | 1/2 in |
| Pressure Rating | 150 psi |
| Series | Global Air King™ |
| Type | Universal |
| Hex Size | 31/32 in |
| Length | 2-11/16 in |
| Dimensions | 2-1/2 in W |
Features
- Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
- Air king meets pressure requirements as specified in A-A-59553 commercial item description superseding mil Spec.WWC-633D
- Supplied with rubber washer, part no AWR4
- Rubber seal
- Never use any air king coupling for steam service!
- The use of an air king safety clip or wire type retainer is necessary to ensure air king universal couplings will not become accidentally disconnected
- To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose
- 150 psi at ambient temperature 70 deg F
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
Guides & Manuals
Dixon_Valve_Coupling_QM4_Catalog.pdf
Download
