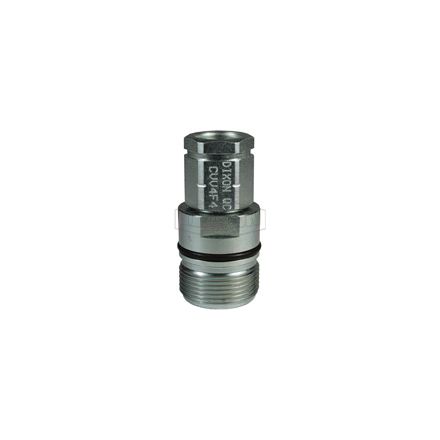

DIXON CVV4F4 DQC CVV PRISE FEMELLE INTERCHANGEABLE EUROPÉENNE, 1/2-14 NOMINAL, FEMELLE NPTF, ACIER
- GLD# DIXON-116101
- MFG# CVV4F4
Min. Order Qty 1
Description
Dixon prise femelle interchangeable européenne, jeu : dqc cvv, 1/2-14 nominal, femelle nptf, hexagone de 27 mm, 2.76 po longueur, 5800 lb/po-ca, -13 à 257 deg f, acier, chrome poli, 1.42 po dia ext
Specifications
| UNSPSC | 40170000 |
|---|---|
| End Style | Female NPTF |
| Nominal Size | 1/2-14 |
| Pressure Rating | 5800 psi |
| Material | Steel |
| Dimensions | 1.42 in OD |
| Hex Size | 27 mm |
| Length | 2.76 in |
| Series | DQC CVV |
| Finish | Polished Chrome |
| Application | Agricultural and Industrial |
| Temperature Rating | -13 to 257 deg F |
Features
- Machined components are manufactured using solid bar stock
- Steel retaining rings and springs maximize service life in rugged environments
- Steel componentry is plated using ROHS compliant trivalent chrome
- Nipples have a PTFE anti-extrusion ring to prevent O-ring damage during dynamic impulse service
- 1/2 in body
- European screw-together interchange
- Compatible with Inteva STG-series, Faster CVV-series, DNP PVV3, Voswinkel Type-HS, Stucchi VD series
