Dixon Valve _ Coupling

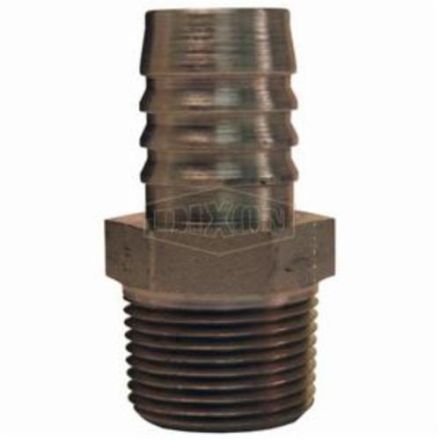

1" RTN LINE NIPPLE MALE NPTF D: 508, 510, 512
- GLD# DIXON-103823
- MFG# 188-16
Description
Dixon tige pivotante hydraulique, conduite daspiration et de retour, 1-11-1/2 x 1 po nominal, mnpt x raccord cannelé, 1-3/8 po hex, 2-3/4 po de longueur, acier, plaqué, domestique
Specifications
| UNSPSC | 27121700 |
|---|---|
| End Style | MNPT x Hose Barb |
| Nominal Size | 1-11-1/2 x 1 in |
| Type | Suction and Return Line |
| Material | Steel |
| Domestic/Import | Domestic |
| Hex Size | 1-3/8 in |
| Length | 2-3/4 in |
| Finish | Plated |
| Application | Designed and machined for hydraulic suction line applications using SAE100R4 hydraulic hose |
Features
- Return line clamps must be used with these fittings
- Barbs provide easy assembly and maximum gripping action
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
