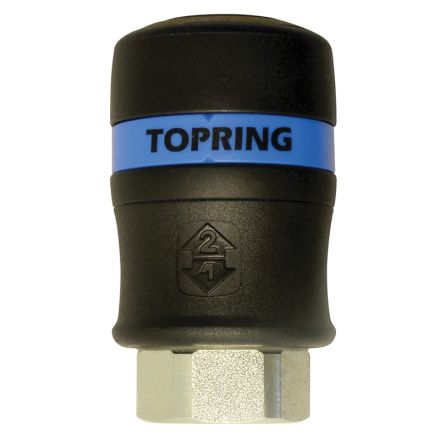

RACC. TOPQUIK (1/2 IND) 3/8(F)NPT SEC.
- GLD# 4290641689430480000
- MFG# 22.469
- UPC 774679224691
Min. Order Qty 1
Description
Coupleur TOPRING, gamme : topquik s22, coupleur, 3/8 po nominal, pousser pour se connecter x fnpt, 174 lb/po-ca, -15 à 70 deg c, composite de fibre de verre à fort impact, importer
Specifications
| UNSPSC | 40183107 |
|---|---|
| Application | For any pneumatic connection where safety is of utmost concern |
| Domestic/Import | Import |
| End Style | Push-to-Connect x FNPT |
| Material | High Impact Fiberglass Composite |
| Nominal Size | 3/8 in |
| Pressure Rating | 174 psi |
| Series | TOPQUIK S22 |
| Temperature Rating | -15 to 70 deg C |
Features
- 167 scfm at 100 psi inlet with 10 psi pressure drop material airflow
- Accept 1/4 industrial type plugs (A-A-59439)
- Prevents dangerous hose whip through a two step disconnection
- Shock and crush resistant coupler provides exceptionally long service life
- Silicone free body prevents the risk of compressed air contamination during paint or varnish applications
- Non-marring coupler body prevents scratching delicate surfaces
- Super lightweight composite body contributes to ergonomics and safety
- Automatic push-to-connect operation
- Downstream pressure automatically vented for easy disconnection at zero pressure
- Disconnection noise level of only 80 dB
