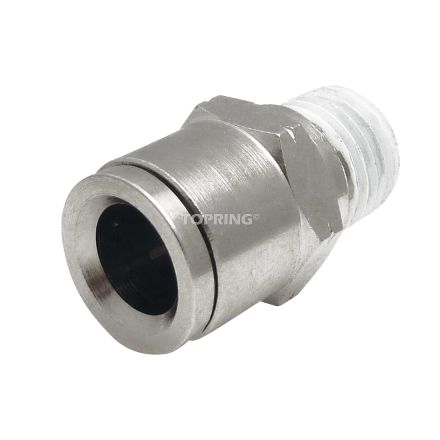

RACC. (M) 5/32 X 10-32(M)UNF TOPFIT
- GLD# 4340149153330391000
- MFG# 39.106
- UPC 774679391065
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description
Connecteur TOPRING, droit, gamme : topfit s39, connecteur, 5/32 po x # 10-32 nominal, pousser pour se connecter x munf, 290 lb/po-ca, -10 à 80 deg c, laiton, plaqué nickel, importer
Specifications
| UNSPSC | 27131600 |
|---|---|
| Application | Compressed Air and Vacuum for Calibrated Polyethylene, Nylon, Polyurethane and Soft Metal Tubing |
| Domestic/Import | Import |
| End Style | Push-to-Connect x MUNF |
| Finish | Nickel Plated |
| Material | Brass |
| Nominal Size | 5/32 in x #10-32 |
| Pressure Rating | 290 psi |
| Series | TOPFIT® S39 |
| Temperature Rating | -10 to 80 deg C |
| Type | Straight |
Features
- Quick connect design - 1-piece fitting saves over 75% of assembly time compared to standard compression fittings
- Instantaneous connection/disconnection - No tool required for assembly
- Full flow design provides up to 60% more flow than compression fittings
- Fully reusable - Designed to resist multiple connections and disconnections with leak-free operations and solid tubing gripping
- Self contained assembly, no loose parts or inserts
