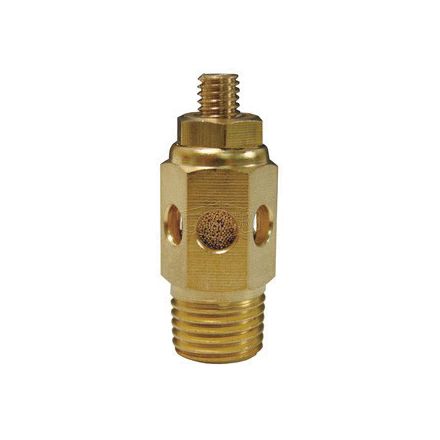

1/8" Speed Control Muffler D: 173, 887
- GLD# DIXON-129295
- MFG# SCM18
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description
Silencieux de contrôle de vitesse Dixon, taille 1/8 po npt, 20 pied cube standard par minute, pression 300 lb/po-ca, 35 à 300 deg f, laiton, 1- 5/16 po h
Specifications
| UNSPSC | 27131609 |
|---|---|
| Application | Speed control mufflers provide an infinite variation of metering air flow at an acceptable sound level on exhaust ports of air valves with complete safety |
| Material | Brass |
| Pressure Rating | 300 psi |
| Temperature Rating | 35 to 300 deg F |
| Dimensions | 1-5/16 in H |
| Size | 1/8 in NPT |
| Flow Rating | 20 scfm |
Features
- Safe and infinite variations of metering air flow at acceptable sound levels on exhaust ports of air valves
- Speed of operating cylinder or air tool may be increased or decreased with adjusting screw, the final position is locked in place by the lock nut
- Exhaust air noise is eliminated by a surrounding sleeve of sintered bronze
Guides & Manuals
Dixon_Valve_Coupling_SCM18_Catalog.pdf
Download
