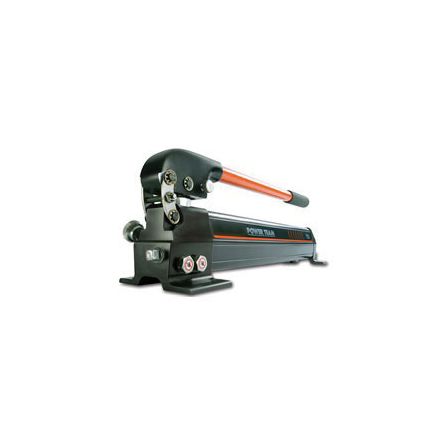

TWO-SPEED, SINGLE-ACTING, PORTABLE, HYDRAULIC PUMP, 10 000PSI
- GLD# 9880785
- MFG# P19L
Min. Order Qty 1
Description
Power Team Pompe hydraulique , commande manuelle 2 vitesses, gamme : p gamme, réservoir de 29 pouces cubes, fluide dhuile, pression de 325 à 10 000 lb/po-ca, port nptf de 3/8 po , 13-11/16 po longueur hors tout, 4-1/8 en largeur hors tout, 5-1/2 en hauteur hors tout
Specifications
| UNSPSC | 40151500 |
|---|---|
| Application | For use with single-acting cylinders |
| Overall Height | 5-1/2 in |
| Overall Length | 13-11/16 in |
| Overall Width | 4-1/8 in |
| Pressure Rating | 325 to 10000 psi |
| Series | P Series |
| Type | Manually Operated 2-Speed |
| Tank Capacity | 29 cu-in |
| Port Size | 3/8 in NPTF |
| Fluid Type | Oil |
Features
- All metal construction won't burn through in welding environments
- 2-speed reduces handle strokes so you work faster and easier
- Formed metal handle provides less flex and reduces operator fatigue
- Convenient fill port allows pumps to be filled in a horizontal or vertical position
- Relief valve inboard of check valve prevents loads from drifting down
- Large valve knob gives added control for slowly metering loads down
- More usable oil volume - use with larger or longer stroke cylinders
- True unloading valve set for 850 psi (59 bar) provides more efficiency and lower handle force
- Link design reduces handle effort by 40%
- Durable aluminum reservoir, manifold, and end cap
