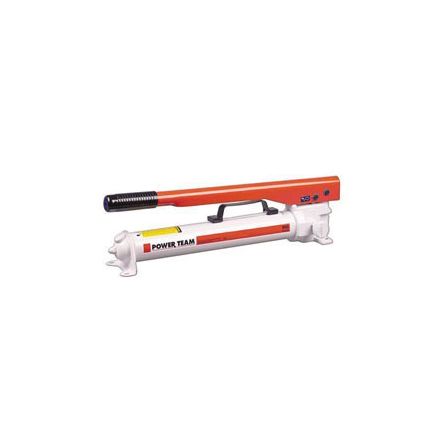

POWER TEAM? P55 P GAMME POMPE HYDRAULIQUE À 1 VITESSE À COMMANDE MANUELLE, RÀSERVOIR DE 55 PO-CU
- GLD# 9890391
- MFG# P55
Min. Order Qty 1
Description
Power Team Pompe hydraulique , commande manuelle 1 vitesse, gamme : p gamme, réservoir de 55 pouces cubes, fluide dhuile, pression de 10 000 lb/po-ca, port nptf de 3/8 po, 23 po longueur hors tout, 4-1/4 en largeur hors tout, 6-1/2 en hauteur hors tout
Specifications
| UNSPSC | 40151500 |
|---|---|
| Application | For use with single-acting cylinders |
| Overall Height | 6-1/2 in |
| Overall Length | 23 in |
| Overall Width | 4-1/4 in |
| Pressure Rating | 10000 psi |
| Series | P Series |
| Type | Manually Operated 1-Speed |
| Tank Capacity | 55 cu-in |
| Port Size | 3/8 in NPTF |
| Fluid Type | Oil |
Features
- All metal construction won't burn through in welding environments
- Formed metal handle provides less flex and reduces operator fatigue
- Convenient fill port on P23 and P55 allows pumps to be filled in a horizontal or vertical position
- Fill cap seal acts as safety valve preventing over-pressurizing of reservoir
- Relief valve inboard of check valve prevents loads from drifting down
- Large valve knob gives added control for slowly metering loads down
