Description

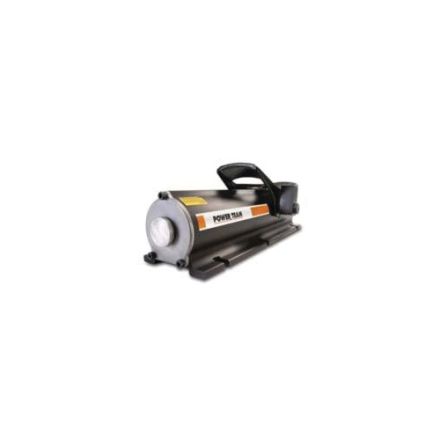

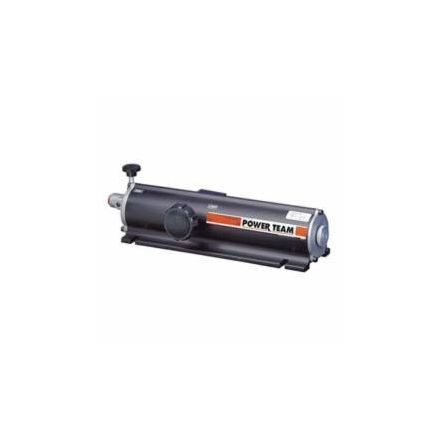

Pompe hydraulique pneumatique power team, simple effet, 9 po-cu, orifice fluide 3/8 po nptf, 33.5 po-cu dhuile, réservoir de 35 po-cu, 40 à 120 lb/po-ca air, 75 dba, longueur 16-15/16 po, 5-5/16 po largeur, 5.Hauteur 63 po
Specifications
| UNSPSC | 40151533 |
|---|---|
| Application | For powering cylinders and portable hydraulic tools |
| Reservoir Capacity | 35 cu-in |
| Type | Single Acting |
| Air Flow Rate | 9 cu-in |
| Air Pressure | 40 to 120 psi psi |
| Fluid Port Size | 3/8 in NPTF |
| Height | 5.63 in in |
| Length | 16-15/16 in in |
| Oil Capacity | 33.5 cu-in |
| Sound Level | 75 dBA dBA |
| Width | 5-5/16 in in |
Features

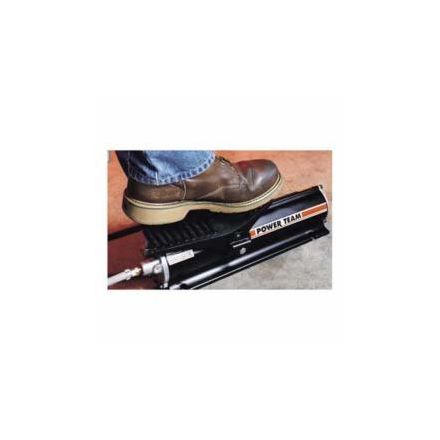

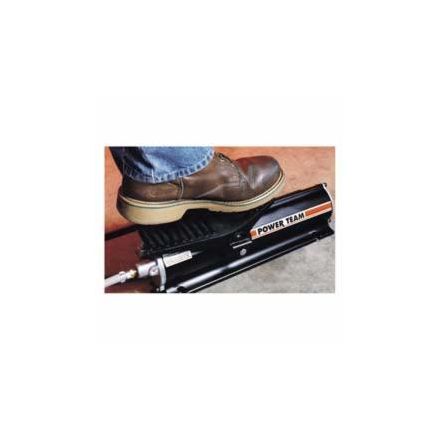

- Easier to operate than a hand pump, giving you the speed you need at an affordable price
- Easy and economical to service, not a throw away unit
- Unique bladder design for all-position operation and storage
- Hard-coat anodized aluminum housing
- Oil filler with integral safety relief minimizes chance of damage to reservoir bladder if overfilling occurs
- Use with single acting cylinders
- 10000 psi maximum pressure output
