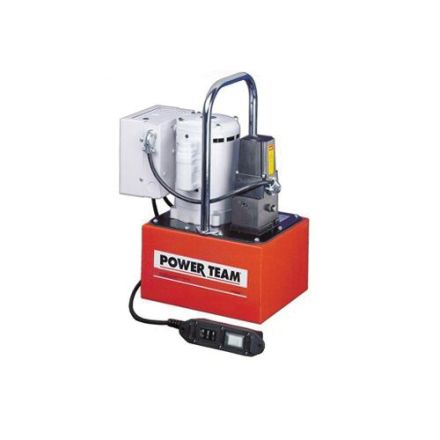

PUMP,E 17 CU IN/MIN, 110/115V, 50/60HZ
- GLD# 9936300
- MFG# PE172SM
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description
Power team pompe hydraulique électrique, portable, jeu : pe17, 2 étages, réservoir de 375 po-cu, 1/2 hp, débit de 16 po-cu/min, 0 à 10000 lb/po-ca de pression, 110/115 vca, 10 une, fréquence 50/60 hz, vitesse de 3450 tr/min, 11-1/2 po longueur totale, 9-1/2 po largeur hors tout, 18-1/8 po hauteur hors tout
Specifications
| UNSPSC | 40151533 |
|---|---|
| Application | Maintenance and Construction Applications |
| Amperage Rating | 10 A |
| Flow Rate | 16 cu-in/min |
| Frequency Rating | 50/60 Hz |
| Horsepower | 1/2 hp |
| Overall Height | 18-1/8 in |
| Overall Length | 11-1/2 in |
| Overall Width | 9-1/2 in |
| Pressure Rating | 0 to 10000 psi |
| Reservoir Capacity | 375 cu-in |
| Series | PE17 |
| Speed | 3450 rpm |
| Type | Portable |
| Voltage Rating | 110/115 VAC |
| Number of Stages | 2 |
Features
- For use with single or double acting cylinders at operating pressures to 10000 psi (700 bar)
- For intermittent duty, starts under full load
- Equipped with 1/2 hp (0.37 kW), 3450 rpm, single phase, thermal protected induction motor, 10 ft remote control cord (PE172S has 25 ft (7.6 m) cord)
- Low amperage draw, small generators and low amperage circuits can be used as power source
- Extremely quiet noise level
