TESTEUR D'INTENSITÉ À FOURCHE POUR CVC/R, LECTURES DU COURANT, C.A./C.C.
- GLD# MIL-111086
- MFG# 2206-20
- UPC 045242173747
Min. Order Qty 1
Description

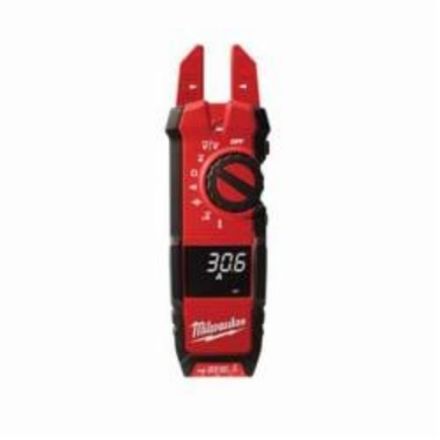

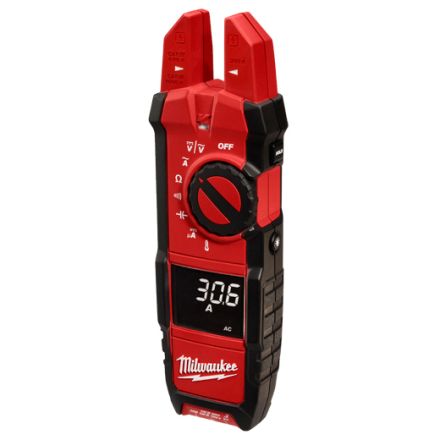

Compteur à fourche Milwaukee, à toute épreuve numérique, 1000 vca/ v cc, 200 a, 40 mohm, 50/60 hz, mâchoire 5/8 po, compte : 4000, contraste élevé blanc sur lcd noir, tours/mn réels ac response, +/- 2 % + 5 chiffres de précision, cote de sécurité : cat. Iv 600 v/ cat. Iii 1000 v, pile alcaline, -40 à 752 deg f en fonctionnement, 8 po l, surmoulage robuste
Specifications
| UNSPSC | 41113637 |
|---|---|
| Application | For HVAC/R 2206-20, professional residential, commercial and industrial applications |
| Dimensions | 8 in L |
| Display Type | High Contrast White on Black LCD |
| Frequency Rating | 50/60 Hz |
| Type | Heavy Duty Digital |
| Resistance | 40 mOhm |
| Safety Rating | CAT IV 600 V, CAT III 1000 V |
| AC Current Accuracy | +/-2% +/-5 Digits |
| Counts | 4000 |
| Electrical Ratings | 200 A, 1000 VAC/VDC |
| Jaw Capacity | 5/8 in |
| Operating Temperature | -40 to 752 deg F |
| Power Source | AA Alkaline Battery |
| AC Response | True RMS |
Features
- Measures up to 200 A, wide 0.63 in jaw opening
- Wide voltage range to 1000 VAC/DC
- True-RMS for accurate measurement in all applications
- 600 uA DC for flame rectification
- Built-in voltage detector and LED work light
- Thermocouple (dual banana) input for contact temperature measurement
- High contrast white on black display with backlight for easy reading
- Rugged over-molding increases durability and user grip
