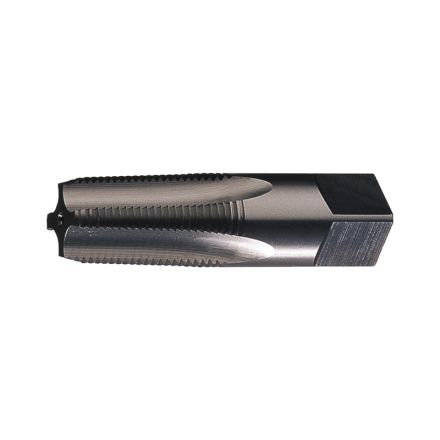

CLEVELAND C64042 965B USAGE GÉNÉRAL TARAUD TUYAU À GOUJURE DROITE, FILETAGE 3/4-14
- GLD# GREEN-122779
- MFG# C64042
Min. Order Qty 1
Description

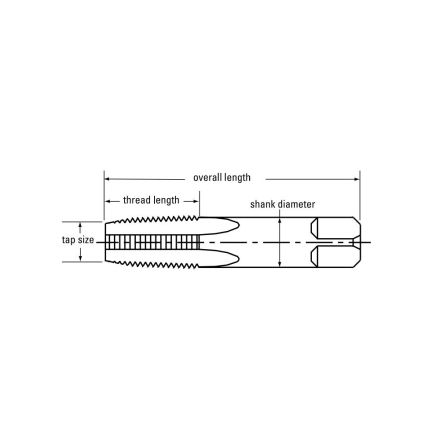

Cleveland taraud pour tuyau, usage général goujure droite, gamme : 965b, système de mesure : impérial, filetage 3/4-14, filetage npt standard, chanfrein semi-fond, longueur de filetage 1-3/8 po, longueur totale 3-1/4 po, 5 goujures, coupe à droite, 0.906 po queue diamètre, 0.679 po carré, hss, brillant, crochet moyen
Specifications
| Application | For thread cutting and blind hole applications |
|---|---|
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | HSS |
| Measurement System | Imperial |
| Number of Flutes | 5 |
| Overall Length | 3-1/4 in |
| Series | 965B |
| Shank Diameter | 0.906 in |
| Thread Length | 1-3/8 in |
| Thread Size | 3/4-14 |
| Thread Standard | NPT |
| Type | General Purpose Straight Flute |
| Square Size | 0.679 in |
| Hook Type | Medium |
| Through Coolant (Yes/No) | No |
| Adjustable Die (Yes/No) | No |
| UNSPSC | 23241615 |
Features
- Ground thread for economical tapping
