Brand
Topring
VALVE MANETTE/RESSORT 5/2 3/8NPT OPTIMA
- GLD# 1000017726
- MFG# 80.945
- UPC 774679809454
Min. Order Qty 1
Description

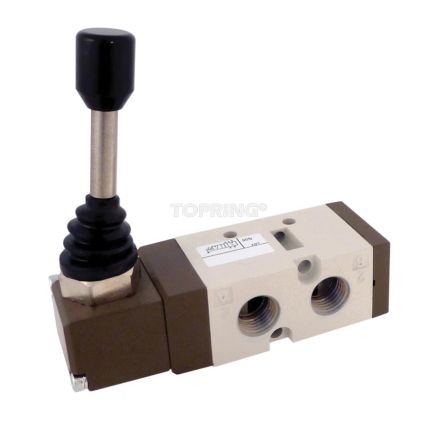

TOPRING Hand Control Valve, Series: OPTIMA S80, 3/8 in FNPT, 22 to 145 psi, 5 to 60 deg C, 1.94 Cv, 5 Ways, 2 Positions, Media: Compressed Air, Lever Operated Actuator, Anodized Aluminum Body, Anodized Aluminum End Caps, Aluminum Spool, Stainless Steel/Brass Internal Parts Trim, Rubber
Specifications
| UNSPSC | 40141609 |
|---|---|
| Flow Rate | 1.94 Cv |
| Trim Material | Anodized Aluminum End Caps, Aluminum Spool, Stainless Steel/Brass Internal Parts |
| Temperature Rating | 5 to 60 deg C |
| Series | OPTIMA S80 |
| Pressure Rating | 22 to 145 psi |
| Port Size | 3/8 in FNPT |
| Media | Compressed Air |
| Body Material | Anodized Aluminum |
| Application | For use to activate double acting cylinders |
| Actuator Type | Lever Operated |
| Softgoods Material | Rubber |
| Number of Ways | 5 |
| Number of Positions | 2 |
Features
- OPTIMA air control valves offer high flow performance and reliability
- Compact size
- High flow
- Quick response
- Highly reliable spool technology
- 3 and 5 ways, 2 and 3 positions
- Designed for in-line or bar manifolding
- Pushing the lever shifts the spring return valve
- When the lever is released, the valve returns to its normal positions
