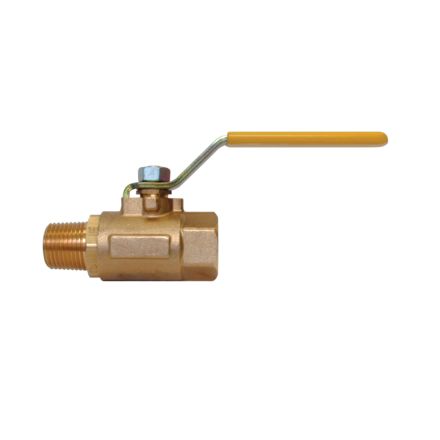

ROBINET LAITON 1/4(M-F)NPT
- GLD# 4371958335700249000
- MFG# 65.700
- UPC 774679657000
Min. Order Qty 1
Description
Topring robinet à tournant sphérique, 2 pièces, jeu : s65, 1/4 po nominal, connexion mnpt x fnpt, 600 lb/po-ca de pression, -29 à 120 deg c, passage intégral, actionneur de poignée, corps en laiton, joint en ptfe, bille en laiton chromé poli, garniture en ptfe
Specifications
| UNSPSC | 40141607 |
|---|---|
| Application | Compressed Air and Water Distribution Systems Applications |
| Body Material | Brass |
| Pressure Rating | 600 psi |
| Series | S65 |
| Temperature Rating | -29 to 120 deg C |
| Trim Material | Ptfe |
| Connection Type | Mnpt x fnpt |
| Nominal Size | 1/4 in |
| Type | 2-Piece |
| Port Type | Full |
| Seal Material | Ptfe |
| Ball Material | Polished Chrome Brass |
| Actuator Type | Handle |
Features
- Ideal for isolating compressed air from part of the network for maintenance, service, repair or component changes
- Saves energy when parts of the network are not used
- Industrial quality two piece forged brass
- Polished chrome brass ball valve and nickel plated brass body for long service life and additional resistance to corrosion
- Trim material - PTFE stem
- Seal material - PTFE ball seal
