ROBINET LAITON 1/4(F) X 1/4(F)NPT
- GLD# 9891150
- MFG# 65.725
- UPC 774679657253
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description

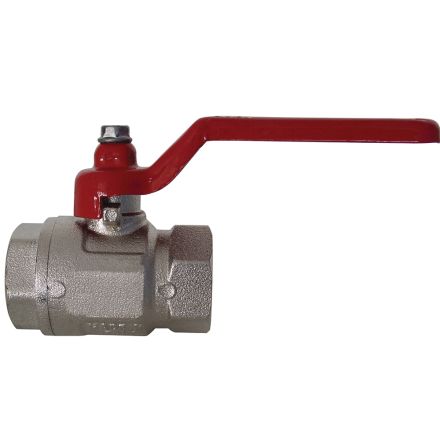

Topring robinet à tournant sphérique, 2 pièces, jeu : s65, 1/4 po nominal, connexion fnpt, 725 lb/po-ca de pression, -20 à 150 deg c, passage intégral, actionneur à poignée, corps en laiton, joint en laiton/fkm/caoutchouc nitrile/ptfe, bille en laiton chromé poli, nickelé
Specifications
| UNSPSC | 40141607 |
|---|---|
| Application | Compressed Air and Water Distribution Systems Applications |
| Body Material | Brass |
| Pressure Rating | 725 psi |
| Series | S65 |
| Temperature Rating | -20 to 150 deg C |
| Connection Type | FNPT |
| Nominal Size | 1/4 in |
| Type | 2-Piece |
| Port Type | Full |
| Finish | Nickel Plated |
| Seal Material | Brass/FKM/Nitrile Rubber/PTFE |
| Ball Material | Polished Chrome Brass |
| Actuator Type | Handle |
Features
- Ideal for isolating compressed air from part of the network for maintenance, service, repair or component changes
- Saves energy when parts of the network are not used
- Industrial quality two piece forged brass
- Polished chrome brass ball valve and nickel plated brass body for long service life and additional resistance to corrosion
- Seal material - brass stem seal, PTFE ball seal, FKM and nitrile rubber seal
