Manufacturer
Bessey

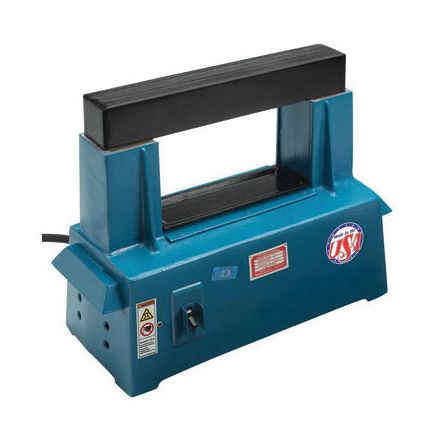

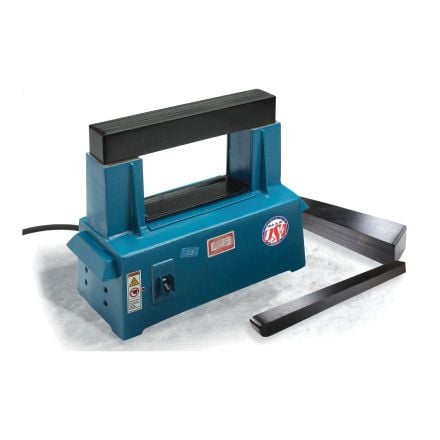

BESSEY BCS 220V CHAUFFE-PALIER, 22 PO DIAM. EXT. X 11 PO LARG., 220 VOLTS
- GLD# BESSEY-00130
- MFG# BCS 220V
- UPC 788502161008
Min. Order Qty 1
Specifications
| UNSPSC | 40101831 |
|---|---|
| Application | For use with bearings, sprockets, gears, couplings and sleeves |
| Amperage Rating | 30 A |
| Bearing Maximum Outside Diameter | 22 in |
| Bearing Width | 11 in |
| Dimensions | 13-1/2 in L x 23 in W x 17 in H |
| Frequency Rating | 60 Hz |
| Material | Cast Aluminum |
| Maximum Temperature | 250 deg F |
| Series | BCS |
| Type | Magnetic Induction |
| Voltage Rating | 240 VAC |
Features
- Bessey® induction bearing heater extends bearing life and cuts operating cost by eliminating hammering and pounding to cold-mount bearings
- Reduces risk to operator from flames, torches or oil baths
- Also demagnetizes bearings easy to use, ready in minutes
Guides & Manuals
Bessey_1000L_Catalog.pdf
Download
