Manufacturer
3M

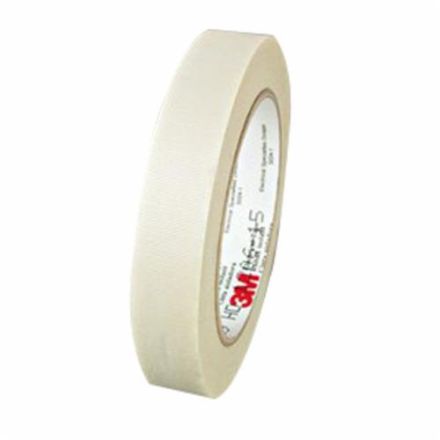

Scotch® 27 Glass Cloth Electrical Tape, white, 1/2 i
- GLD# 4179263320720187000
- MFG# 7000005814
- UPC 7000005814
Estimated Delivery Time
24 to 48h
5 in stock
$27.11 / each
Already a customer?
Access your exclusive rates by logging in.
Min. Order Qty 1
Description
Scotch ruban isolant, usage spécial de qualité supérieure, longueur 66 pi, largeur 1/2 po, épaisseur 7 mil, blanc, âme de 3 po de diamètre, adhésif en caoutchouc thermodurcissable, revêtement en tissu de verre, 30 po-oz force dadhérence, 600 vca, 3000 v/mil rigidité diélectrique, 150 po-lb résistance à la traction, 302 deg f fonctionnement maximum, 32 deg f fonctionnement minimum
Specifications
| Color | White |
|---|---|
| UNSPSC | 15121804 |
| Length | 66 ft |
| Maximum Operating Temperature | 302 deg F |
| Minimum Operating Temperature | 32 deg F |
| Width | 1/2 in |
| Application | For coil cover, anchor, banding and core, layer and crossover insulation applications |
| Adhesion Strength | 30 in-oz |
| Dielectric Strength | 3000 V/mil |
| Material Type | Glass Cloth |
| Specifications Met | UL Listed, CSA Certified |
| Tensile Strength | 150 in-lb |
| Thickness | 7 mil |
| Type | Premium-Grade Special Use |
| Voltage Rating | 600 VAC |
| Adhesive Material | Thermosetable Rubber |
| Backing Material | Glass Cloth |
| Core Diameter | 3 in |
Features
- Insulating electric and induction type furnace power supply leads
- Insulating motor lead connectors, switchers and controls for furnaces and ovens
- Insulation in coil wrapping outer wrap
- Provides heat stable insulation for hot spot applications
- Securing systems requiring high mechanical strength and resistance to high temperatures
- Splicing wire SF and SFF rated 302 deg F (150 deg C), 356 deg F (180 deg C)
