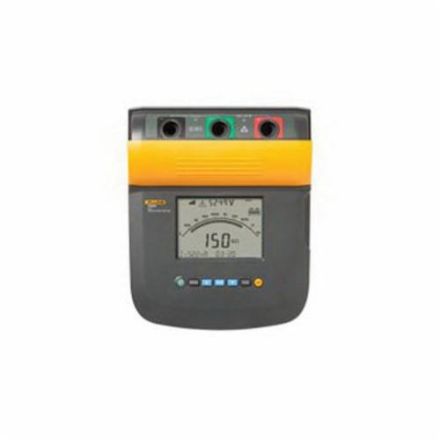

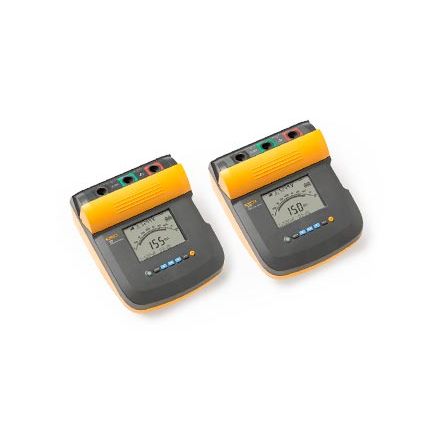

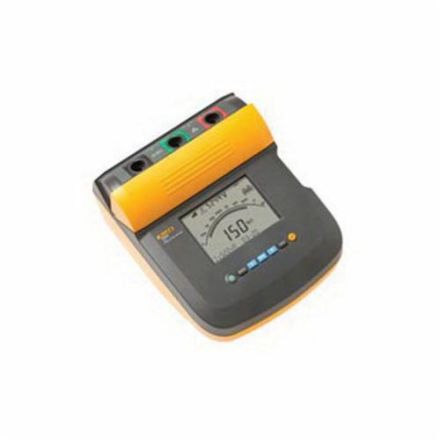

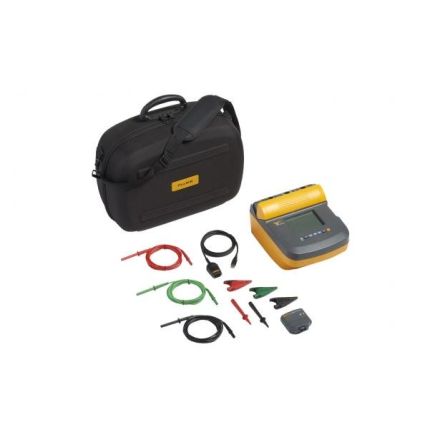

Testeur Isolement Fluke 1550C - 5000VAC - 2TO - Précision ±15% - CAT III/IV
- GLD# FLUKE-100053
- MFG# 3665021
- UPC 095969550918
Min. Order Qty 1
Description
Testeur disolement Fluke, 5000 VCA, résistance de 200 kohms à 2 tohms, résistance de 2 ohms, précision +/- (15 % + 2 v), écran lcd, cote de sécurité : cat. Iii 1000 v/cat. Iv 600 v, 12 VCC batterie rechargeable au plomb/yuasa np2.Source dalimentation 8-12, ip40 boîtier
Specifications
| UNSPSC | 41113624 |
|---|---|
| Application | For general circuits, such as switchgear, motors and cables |
| Accuracy | +/- (15% + 2 V) |
| Display Type | LCD |
| Resistance | 2 TOhm |
| Safety Rating | CAT III 1000 V/CAT IV 600 V |
| Voltage Rating | 5000 VAC |
| Power Source | 12 VDC Lead Acid Rechargeable Battery/Yuasa NP2.8-12 |
| Enclosure Type | IP40 |
| Resistance Range | 200 kOhm to 2 TOhm |
Features
- Digital insulation testing up to 10 kV
- Redesigned Fluke® 1550C insulation resistance tester, offers digital insulation testing up to 10 kV, making them ideal for testing a wide range of high voltage equipment including switch gear, motors, generators
- Long battery life gives the user over 750 tests between charges
- Automatic calculation of dielectric absorption (DAR) and polarization index (PI) with no additional setup
- Ramp function for breakdown testing
- Timer settings up to 99 minutes for timed tests
- Guard system eliminates the effect of surface leakage current on high resistance measurements
- Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
- 75 x 105 mm LCD, Digital LCD/analog display
- 2 deg pollution, -20 to 50 deg C temperature rating, IP rating IP40
